AMTC Stainless Steel Straight Centrifugal Pedestal Pump
AMTC Stainless Steel Straight Centrifugal Pedestal Pump
SKU:PRO-1f729d
AMTC Stainless Steel Pedestal Pump - Durable, High-Performance Solution for Water Management Needs
Regular price
$1,850.99
Regular price
Sale price
$1,850.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

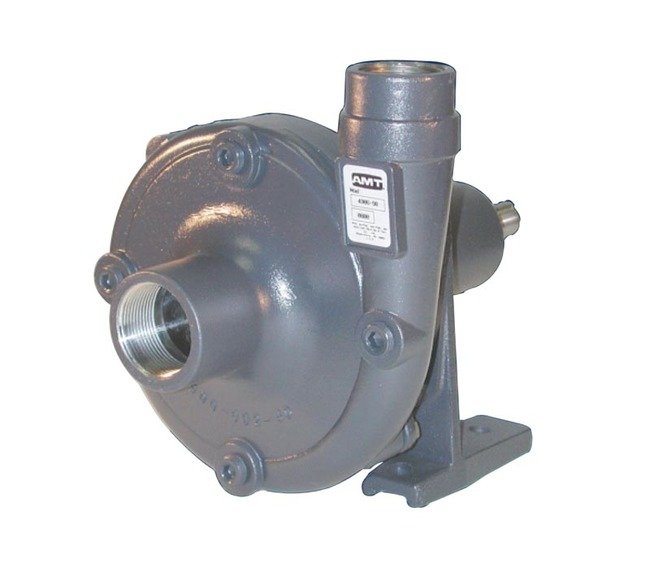

The AMTC Stainless Steel Straight Centrifugal Pedestal Pump is a reliable solution for water management applications. Constructed with durable stainless steel fittings and a self-cleaning impeller, this pump offers a maximum flow rate of 118 GPM and a maximum head of 148 ft. With a Viton/Stainless Steel shaft seal construction and a 2 hp power capacity, it ensures efficient performance. The pump meets general service working pressure standards of 75 PSI and high head applications up to 150 PSI. Ideal for industrial, commercial, and municipal settings requiring a robust and high-performing pumping solution.
Product Specifications
Specifications 0

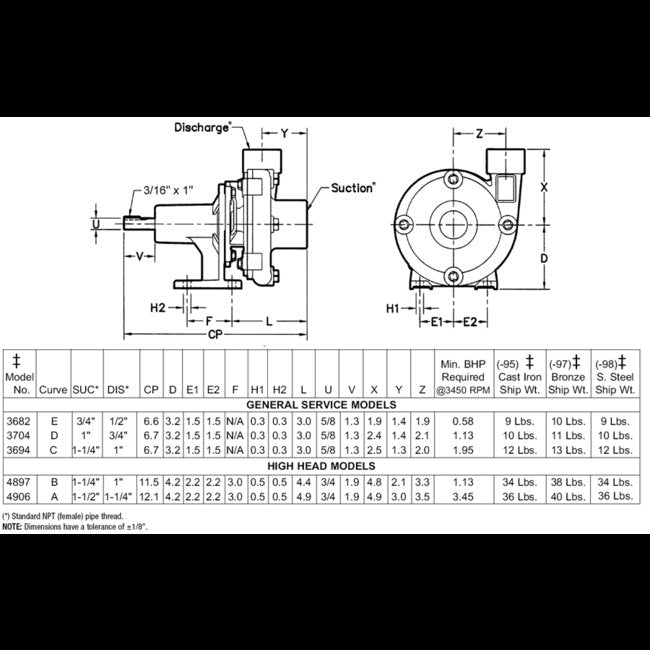

Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702022
Specifications Height
6 in | 144.78 mm
Specifications Inlet Size
1 1/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 170.18 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Bronze
Specifications Model
3694-97
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1 in
Specifications Power
2 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT369497SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
13 | 5.90 | 13 lbs
Specifications Width
6 in | 162.56 mm
