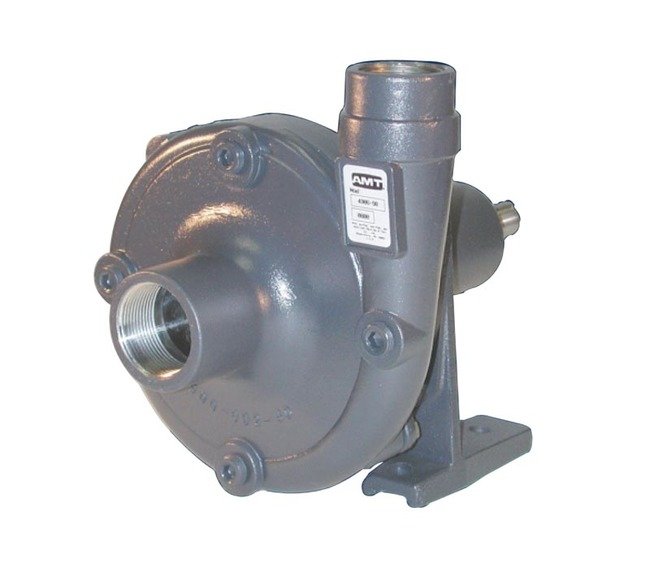

AMTC Straight Centrifugal Pedestal Pump
AMTC Straight Centrifugal Pedestal Pump
SKU:PRO-c36d8a
High-performance AMTC Pedestal Pump for reliable water handling in industrial settings.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
AMTC Straight Centrifugal Pedestal Pump
$749.99
Quantity: 1
Claim Your Seller Account
AMTC Straight Centrifugal Pedestal Pump
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMTC Straight Centrifugal Pedestal Pump is a durable and efficient solution for various water applications. Manufactured by American Machine and Tool Company, this pump features a stainless steel fitted cast iron construction, self-cleaning impellers, and a maximum flow rate of 118 GPM. With a working pressure of up to 150 PSI and a maximum temperature of 200°F, it meets the demands of high-head pumping tasks. The epoxy-coated pedestal drive ensures reliability in challenging conditions, making it ideal for industrial and institutional settings.
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models

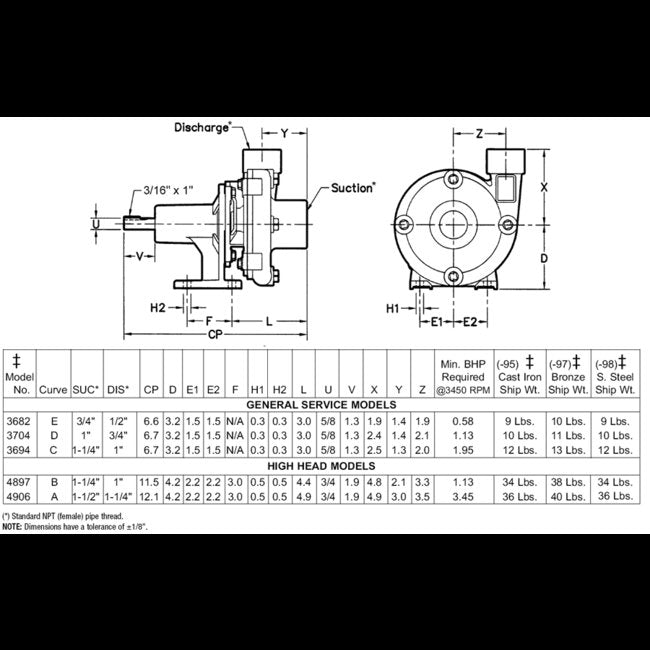

Specifications Curve
E
Specifications Customs Code
HTS Code 8413702022
Specifications Height
5 in | 129.54 mm
Specifications Inlet Size
3/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 167.64 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Bronze
Specifications Model
3682-97
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1/2 in
Specifications Power
1/2 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT368297SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
10 | 4.54 | 10 lbs
Specifications Width
6 in | 144.78 mm
