AMTC Straight Centrifugal Pedestal Pump
AMTC Straight Centrifugal Pedestal Pump
SKU:PRO-1f729d
Powerful and reliable Straight Centrifugal Pedestal Pump by AMTC for high-performance pumping needs.
Regular price
$2,150.00
Regular price
Sale price
$2,150.00
Unit price
per
Initiate Order
AMTC Straight Centrifugal Pedestal Pump
$2,150.00
Quantity: 1
Claim Your Seller Account
AMTC Straight Centrifugal Pedestal Pump
$2,150.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

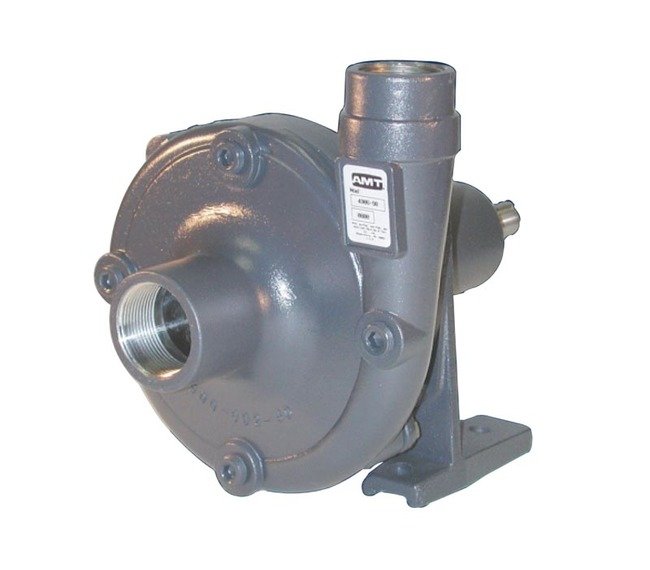

The AMTC Straight Centrifugal Pedestal Pump is a high-quality pump suitable for various applications, featuring stainless steel fitted cast iron construction, 148 ft maximum head, and 118 GPM maximum flow rate. With a durable Viton/Stainless Steel shaft seal, this pump ensures reliable performance. Manufactured by the American Machine and Tool Company, it meets stringent industry standards for efficiency and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Stainless Steel Fitted Cast Iron, Cast Bronze or 300 Series Investment Cast Stainless Steel Construction3/4" to 1-1/2" NPT Suction Ports1/2" to 1-1/4" NPT Discharge PortsMaximum Working PressureGeneral Service - 75 PSIHigh Head - 150 PSISelf-cleaning Impellers on General Service ModelsMaximum TemperatureBuna-N - 180ºFViton® - 200ºFMaximum Flow 118 GPMMaximum Head 148 ft.Discharge Port Rotates in 90º Increments on High Head UnitsEpoxy Coated Pedestal Drive on High Head Models
Specifications Curve
C
Specifications Customs Code
HTS Code 8413702022
Specifications Height
6 in | 144.78 mm
Specifications Inlet Size
1 1/4 in
Specifications Installed Options
Silicon Carbide / Viton Seal Installed (489X-300-VS) | Silicon Carbide / Viton Seal Installed (490X-300-VS)
Specifications Length
7 in | 170.18 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Max Flow Rate
118 gpm
Specifications Max Working Pressure High Head
150 psi
Specifications Moc
Bronze
Specifications Model
3694-97
Specifications Motor Rpm
4000 rpm
Specifications Porting Position
1 in
Specifications Power
2 hp
Specifications Shaft Seal Construction
Viton/Stainless Steel
Specifications Sku
AT369497SP
Specifications Temperature
200 ºF
Specifications Type
Pedestal Pump
Specifications Weight
13 | 5.90 | 13 lbs
Specifications Width
6 in | 162.56 mm
