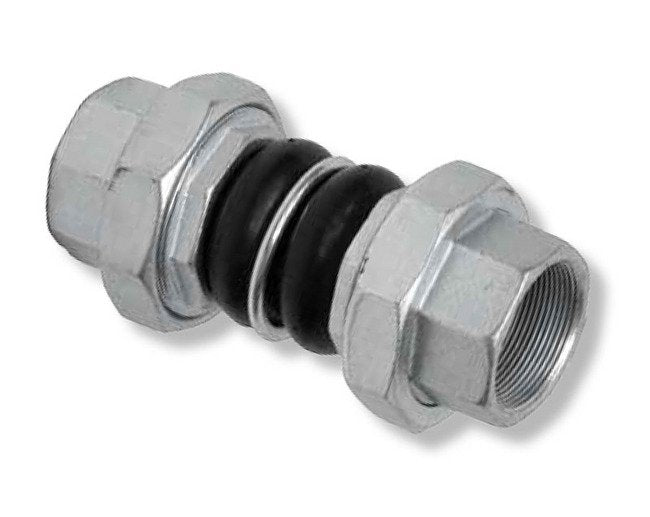

AMU Series 2" Twin-Sphere Connector Fitting with NPT Threads
AMU Series 2" Twin-Sphere Connector Fitting with NPT Threads
SKU:EXP-a482ca
Sure Flow AMU Series 2" Twin-Sphere Fitting for Expansion Joints. Reliable, Flexible, and Durable.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
AMU Series 2" Twin-Sphere Connector Fitting with NPT Threads
$55.99
Quantity: 1
Claim Your Seller Account
AMU Series 2" Twin-Sphere Connector Fitting with NPT Threads
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AMU Series 2 Inch Twin-Sphere Connector Fitting with NPT Threads by Sure Flow is a reliable solution for managing axial compression, elongation, and transverse movement. With an operating pressure of 150 psig, vacuum rating of 16 inHg, and operating temperature range from -10 to 105°C, this fitting ensures flexibility and durability. Constructed with high-quality materials meeting ISO 9001:2008 standards, including CS Zinc Plated and special synthetic rubber, this fitting guarantees performance and longevity. Consult the manufacturer for any design modifications or certifications.
Product Specifications
Construction Construction
Name - UnionMaterial - CS Zinc PlatedName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
15 º
Dimensions Axial Compression
7/8 in
Dimensions Axial Elongation
1/4 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
10 lb
Dimensions Size
2 in
Dimensions Transverse Movement Tolerance
7/8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
150 psig
Operating Pressures And Temperatures Temperature
-10 to 105 ºC | 14 to 221 ºF
Operating Pressures And Temperatures Vacuum Rating
16 inHg
Specifications Series
AMU
