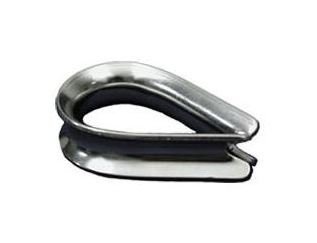

AN 100 Thimbles - Zinc Plated, Made in USA

Name: AN 100 Thimbles - Zinc Plated, Made in USA
Brand: Lexco Cable Manufacturing
SKU: MIL-d2d5f5
Price: 14.99 USD
Availability: OutOfStock

SKU:MIL-d2d5f5

Premium Zinc Plated Thimbles for reliable wire rope installations. Meets Military Specifications. Made in USA.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

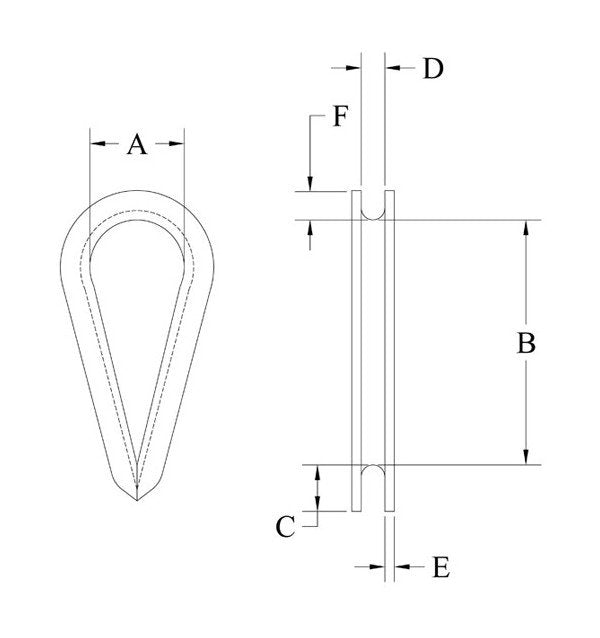

The Made in USA AN 100 Thimbles - ZP are precision-engineered for secure wire rope installations. Crafted from cold-rolled zinc, these thimbles suit wire rope diameters of 9/32" to 5/16". With dimensions A of .900", B of 1-51/64", and C of 7/16", these thimbles meet stringent military specifications. Whether for military or industrial use, these thimbles excel in durability and performance, proudly manufactured in the USA.

Product Specifications

Specifications A In

.900

Specifications B In

1-51/64

Specifications C

7/16

Specifications D

21/64

Specifications E

0.040

Specifications F

7/32

Specifications Nsn

4030-00-262-1883, 4030002621883 | 4030-00-272-7747 , 4030002727747

Specifications Type

Cold Rolled Zinc

Specifications Wire Rope Dia In

9/32 | 5/16

CAGE

0T9L4

NAICS

332510

PSC

4030

AN 100 Thimbles - Zinc Plated, Made in USA
