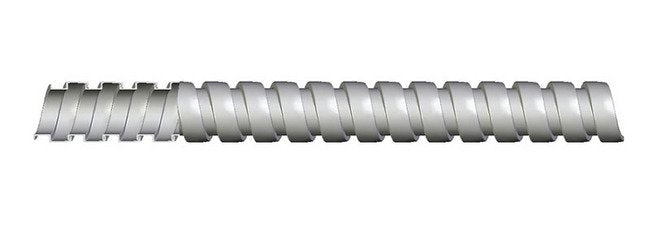

Anaconda DSL5 Extra Flexible Steel Conduit

Name: Anaconda DSL5 Extra Flexible Steel Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-fe1e41
Price: 49.99 USD
Availability: OutOfStock

SKU:FLE-fe1e41

Anaconda DSL5 - Extra Flexible Steel Conduit for Light-Duty Electrical Applications. Interlocked zinc galvanized steel construction. RoHS & WEEE certified.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

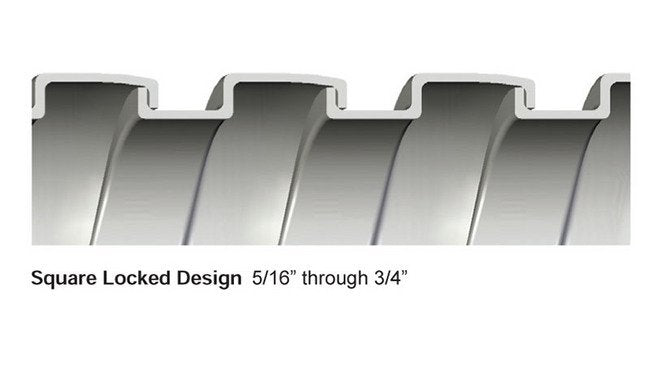

The Anaconda DSL5 Extra Flexible Steel Conduit is a top-tier choice for light-duty electrical applications requiring exceptional flexibility and durability. Made of continuously interlocked hot-dipped zinc galvanized steel, this conduit ensures reliable wiring protection. With a nominal size of 5/16 in and a bend radius of 1.25 in, it accommodates tight bends effortlessly. Certified to meet RoHS and WEEE standards, this conduit is ideal for applications where agency approvals are not required. Custom lengths available upon request.

Product Specifications

Application 0

Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature

Installation 0

Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.

Specifications Approx Inside Bend Radius

1.25 in | 31.75 mm

Specifications Approx Weight Per 100 Ft

6.6 lbs | 2.99 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

93202 | SF | SF-5/16 | SL-516

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.307 to 0.322 in | 7.798 to 8.179 mm

Specifications Jacket Material

None

Specifications Nominal Size

5/16 in | 8 mm

Specifications Outside Diameter

0.417 to 0.432 in | 10.592 to 10.973 mm

Specifications Standard Length Coil

250 ft | 76.2 m

Specifications Type

DSL

Anaconda DSL5 Extra Flexible Steel Conduit
