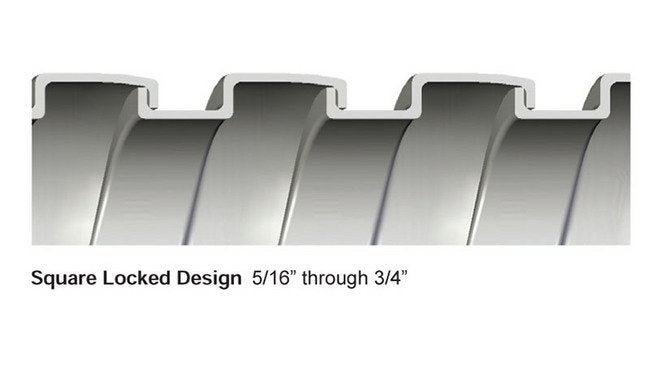

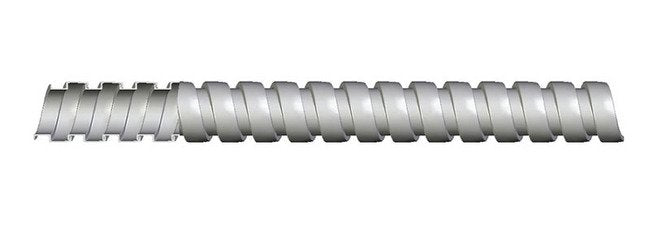

The Anaconda DSL6 is a versatile, extra flexible metal conduit designed for light-duty electrical applications. Constructed from continuously interlocked hot-dipped zinc galvanized steel, this conduit provides a secure raceway for wiring while offering exceptional flexibility for tight bends. With a nominal size of 3/8 inches and a standard length coil of 200 feet, it is ideal for general purpose wiring where agency approvals are not required. This conduit is easy to install with standard connectors and can withstand temperatures up to +450°F, making it perfect for applications requiring mechanical protection. Customize lengths available upon request.
Product Specifications
Application 0
Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature
Installation 0
Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.
Specifications Approx Inside Bend Radius
1.5 in | 38.1 mm
Specifications Approx Weight Per 100 Ft
8.8 lbs | 3.99 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
94202 | 96202 | SF | SF-3/8 | SL-380
Specifications Industry Certifications
RoHS WEEE
Specifications Inside Diameter
0.368 to 0.388 in | 9.347 to 9.855 mm
Specifications Jacket Material
None
Specifications Nominal Size
3/8 in | 9 mm
Specifications Outside Diameter
0.478 to 0.498 in | 12.141 to 12.649 mm
Specifications Standard Length Coil
200 ft | 60.96 m
Specifications Type
DSL
