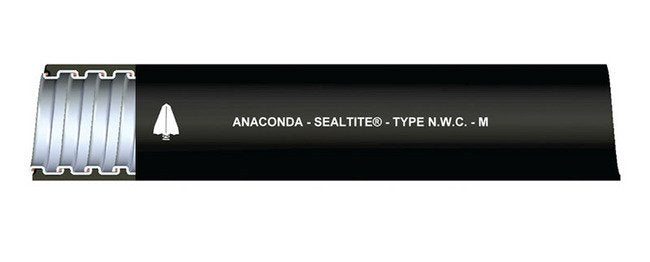

The Anaconda NWC-4 Liquid-Tight Flexible Metal Conduit is specifically designed for nuclear applications and installations requiring radiation protection. Compliant with IEEE 323-1974 and IEEE 383-1974 guidelines, this conduit features a flexible, liquid-tight design with a hot-dipped zinc galvanized steel core and a radiation-resistant black jacket. It is IP 67 Rated and suitable for use within nuclear containment areas, offering a temperature range of -40ºF to +192ºF (-40ºC to +89ºC). Easy to install with standard liquid-tight connectors, this conduit meets NUPIC standards, making it a reliable choice for critical environments.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0

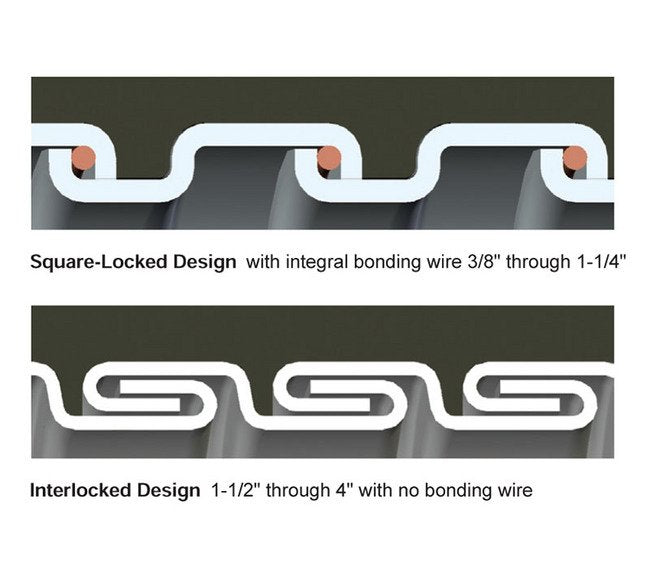

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
36 in | 914.4 mm
Specifications Approx Weight Per 100 Ft
362 lbs | 164.2 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
4 in | 103 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
4.000 to 4.040 in | 101.600 to 102.616 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
25 ft | 7.62 m
Specifications Outside Diameter
4.460 to 4.500 in | 113.284 to 114.300 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
