Anaconda Sealtite EF Liquid-Tight Flexible Metal Conduit 1" - 1000 ft

Name: Anaconda Sealtite EF Liquid-Tight Flexible Metal Conduit 1" - 1000 ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-5e2572
Price: 2599.99 USD
Availability: OutOfStock

SKU:LIQ-5e2572

Anaconda Sealtite EF Liquid-Tight Conduit - Flexible, Zinc Galvanized Steel Core, PVC Jacket, IP 67 Rated. Ideal for General Construction Grade applications.

$2,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

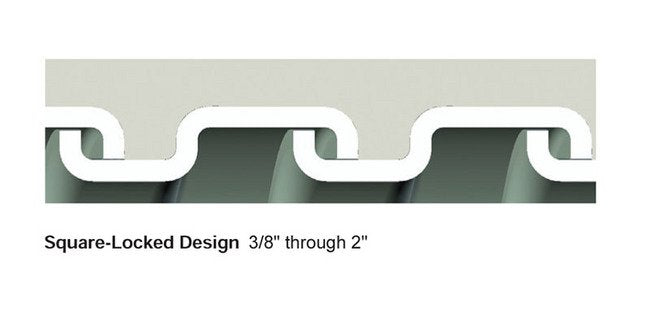

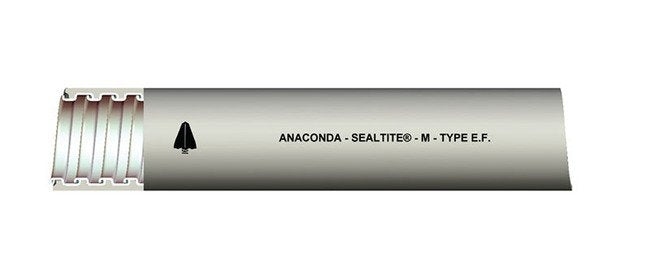

The Anaconda Sealtite EF Liquid-Tight Flexible Metal Conduit is designed for General Construction Grade applications, offering a flexible liquid-tight raceway for wiring. Constructed with continuously interlocked zinc galvanized steel core and a PVC outer jacket, this conduit ensures superior wiring protection. It is IP 67 rated with approved connectors and meets RoHS WEEE standards, making it ideal for applications where agency approvals are not required. With a temperature range of -4ºF to +140ºF, it provides a reliable solution for electrical conductors in a range of settings.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

45 lbs | 20.41 kg

Specifications Color

GRAY

Specifications Core Material

Aluminum

Specifications Cross Reference

EF-13 | EFLT-1 | EXLT-1

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.030 to 1.055 in | 26.162 to 26.797 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

1000 ft

Specifications Note

Standard SEALTITE® Type EFST is recommended in sizes above 2"

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Small Reels

Specifications Type

Anaconda Sealtite EF Liquid-Tight Flexible Metal Conduit 1" - 1000 ft
