Anaconda SEALTITE EFST Liquid Tight Metal Conduit LFMC

Name: Anaconda SEALTITE EFST Liquid Tight Metal Conduit LFMC
Brand: Anamet Electrical, Inc.
SKU: LIQ-5800cc
Price: 249.99 USD
Availability: OutOfStock

SKU:LIQ-5800cc

Anaconda SEALTITE EFST Conduit: Flexible, liquid-tight solution for reliable wiring installations. Ideal for general construction applications, IP 67 rated.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

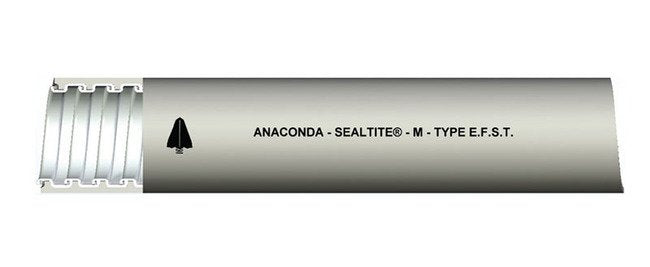

The Anaconda SEALTITE EFST Liquid Tight Metal Conduit is a versatile solution for wiring installation, featuring a flexible, liquid-tight raceway crafted from interlocked hot dipped zinc galvanized steel core with a PVC outer jacket resistant to sunlight. Ideal for general construction applications with a temperature range of -4ºF to +176ºF, this conduit is IP 67 rated when used with approved end connectors, ensuring reliable performance. With a 1-1/4 inch Electrical Trade Size and a length of 250ft, this conduit offers ease of installation and durability for long-term use.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

4.5 in | 114.3 mm

Specifications Approx Weight Per 100 Ft

66 lbs | 29.94 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

14104 | 55-10-70-04 | 6105-40-00 | EF | JIC | JIC-1-1/4 | LT-14

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.370 to 1.395 in | 34.798 to 35.433 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

250 ft | 76.2 m

Specifications Optional Colors

Black

Specifications Outside Diameter

1.635 to 1.660 in | 41.529 to 42.164 mm

Specifications Packaging

Standard Coils

Specifications Type

EFST

Anaconda SEALTITE EFST Liquid Tight Metal Conduit LFMC
