Anaconda SEALTITE MTC Liquid-Tight Flexible Metal Conduit

Name: Anaconda SEALTITE MTC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-572d37
Price: 399.99 USD
Availability: OutOfStock

SKU:LIQ-572d37

Flexible, liquid-tight metal conduit for superior wiring protection. Ideal for machine centers & robotics. RoHS WEEE certified.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

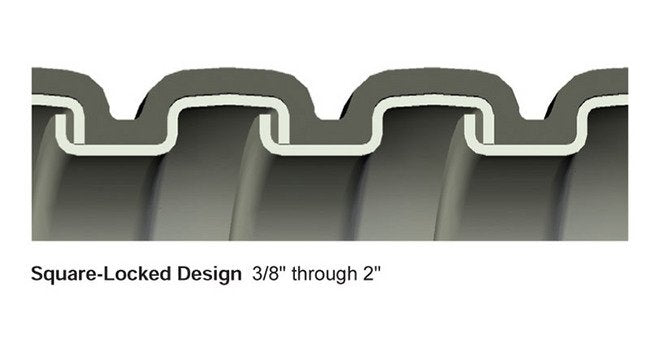

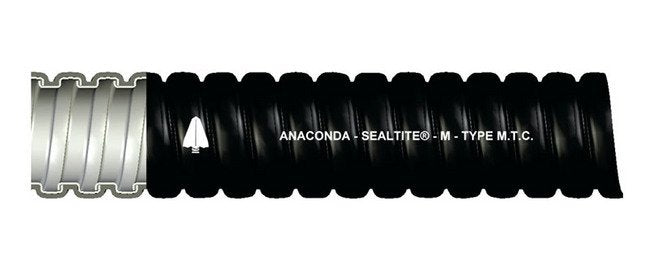

The Anaconda SEALTITE MTC Liquid-Tight Flexible Metal Conduit is engineered to provide a highly flexible and liquid-tight raceway for wiring applications. With a core made of continuously interlocked hot-dipped zinc galvanized steel and a durable PVC outer jacket, this conduit ensures superior wiring protection. Ideal for machine centers and robotics, this conduit is extra flexible, has an IP 67 rating, and operates within a temperature range of -4°F to +140°F (-20°C to +60°C). Suitable for a range of trade sizes, this conduit boasts an industry-standard RoHS WEEE certification for environmental compliance.

Product Specifications

Application 0

Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

24 lbs | 10.89 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

89221 | MTLT | MTLT-3/4 | VJC-12

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

500 ft | 152.4 m

Specifications Outside Diameter

1.009 to 1.034 in | 25.629 to 26.264 mm

Specifications Packaging

Small Reels

Specifications Type

MTC

Anaconda SEALTITE MTC Liquid-Tight Flexible Metal Conduit
