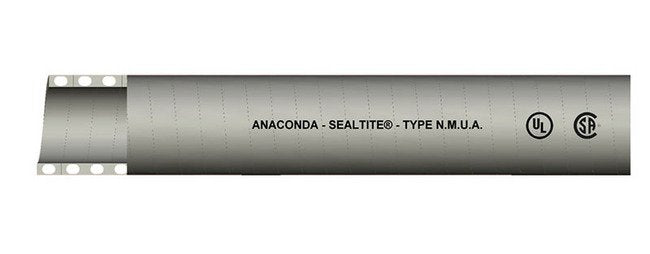

Anaconda SEALTITE NMUA 1 Inch Liquid-Tight Non-Metallic Conduit

Name: Anaconda SEALTITE NMUA 1 Inch Liquid-Tight Non-Metallic Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-6eb13d
Price: 89.99 USD
Availability: OutOfStock

SKU:LIQ-6eb13d

Anaconda SEALTITE NMUA 1 Inch Liquid-Tight Conduit - UL Listed, CSA Certified, IP 67 Rated, Easy to Install

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Anaconda SEALTITE NMUA 1 Inch Liquid-Tight Non-Metallic Conduit is designed for inside, outside, and corrosive applications in accordance with NEC Article 356. With an IP 67 rating when used with approved connectors, this conduit offers a temperature range of -17ºF to +176ºF. It is UL listed and CSA certified as Type B non-metallic conduit, ensuring safety and reliability in varied environments. Approved for direct burial and concrete installations, the conduit is easily installed and cut to fit, meeting industry standards for performance and durability.

Product Specifications

Application 0

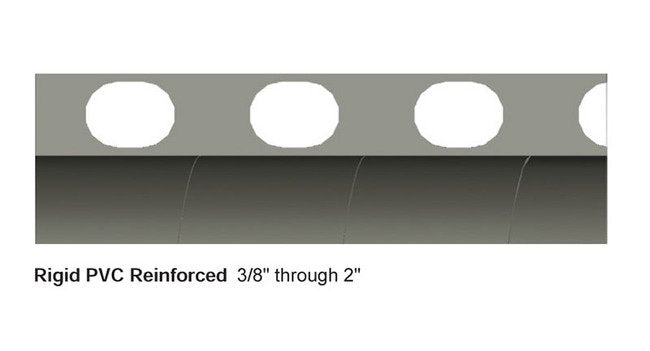

General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).

Installation 0

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".

Nec Articles 0

Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

6.5 in | 165.1 mm

Specifications Approx Weight Per 100 Ft

26 lbs | 11.79 kg

Specifications Color

GRAY

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

55-09-44-01 | 6004-30-00 | 81022 | LFNC-B | NM | NM-13 | NMUA | NMUA-1

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 65/66/67

Specifications Inside Diameter

1.041 to 1.066 in | 26.441 to 27.076 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Standard Carton

Specifications Type

NMUA
