Anaconda SEALTITE Type CNP Liquid-Tight Flexible Non-Metallic Conduit

Name: Anaconda SEALTITE Type CNP Liquid-Tight Flexible Non-Metallic Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-2c361c
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-2c361c

Anaconda SEALTITE Type CNP: Liquid-Tight, Flexibility, Durability. UL & CSA Certified. Ideal for Tough Environments.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

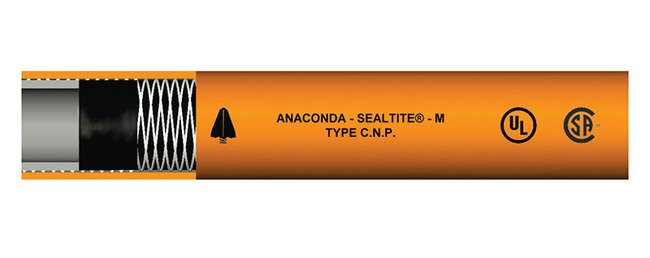

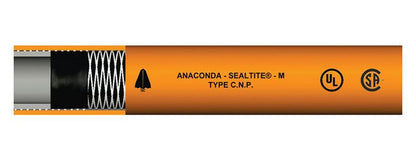

The Anaconda SEALTITE Type CNP Liquid-Tight Flexible Non-Metallic Conduit is a rugged and durable solution for wiring applications in environments requiring non-conductive properties. Constructed with a smooth thermoplastic PVC core, oil and sunlight-resistant outer PVC cover, and nylon reinforcing layer, this conduit offers a liquid-tight raceway for wiring. Meeting UL and CSA certifications as Type 'A' non-metallic conduit, it operates within a temperature range of -4ºF to +140ºF (-20ºC to +60ºC). With IP 67 rating when used with approved end connectors, this conduit is flexible, crush-resistant, and abrasion-resistant, making it ideal for installations where physical abuse, abrasion, or flexing are common.

Product Specifications

Application 0

Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)

Installation 0

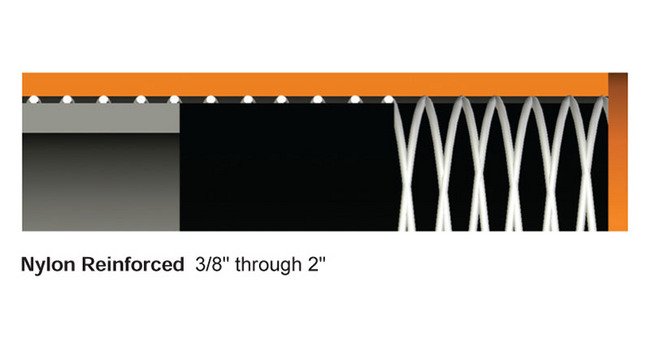

Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.

Nec Articles 0

Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

21 lbs | 9.53 kg

Specifications Color

Orange

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

6502-30-00 | 87102 | LFNC-A | LNM-P 11

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.620 to 0.640 in | 15.748 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Colors available on request.

Specifications Optional Colors

Gray

Specifications Outside Diameter

0.910 to 0.930 in | 23.114 to 23.622 mm

Specifications Packaging

Small Cartons

Specifications Type

CNP
