Anaconda SEALTITE Type EFST Flexible Liquid Tight Metal Conduit

Name: Anaconda SEALTITE Type EFST Flexible Liquid Tight Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-a8c3f9
Price: 289.99 USD
Availability: OutOfStock

SKU:LIQ-a8c3f9

Anaconda SEALTITE Type EFST Flexible Liquid Tight Conduit for reliable and flexible wiring solutions. IP 67 rated with RoHS/WEEE compliance.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

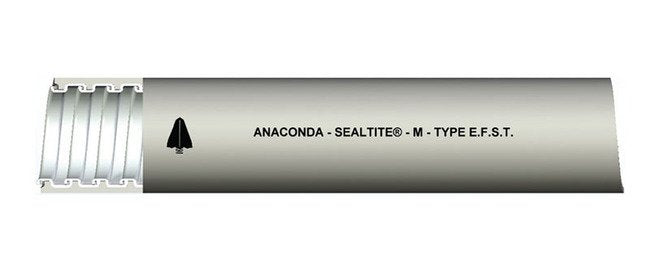

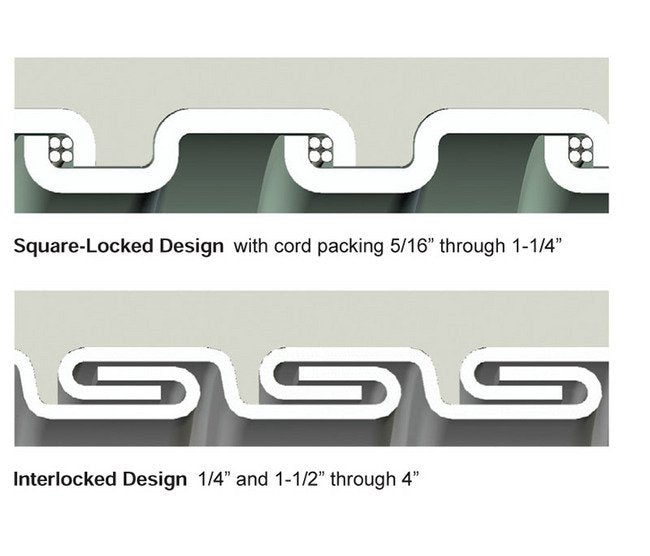

The Anaconda SEALTITE Type EFST Flexible Liquid Tight Metal Conduit offers a reliable solution for wiring applications requiring a liquid-tight raceway. Constructed with a continuously interlocked hot dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit ensures durability and flexibility. With an IP 67 rating when used with approved end connectors, this conduit is suitable for a range of general construction grade applications. RoHS and WEEE compliant, it meets industry standards for environmental responsibility.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

30 in | 762 mm

Specifications Approx Weight Per 100 Ft

666 lbs | 302.09 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

16602 | LT-600

Specifications Electrical Trade Size

6 in | 155 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

6.015 to 6.075 in | 152.781 to 154.305 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

25 ft | 7.62 m

Specifications Optional Colors

Black

Specifications Outside Diameter

6.565 to 6.625 in | 166.751 to 168.275 mm

Specifications Packaging

Standard Package

Specifications Type

EFST

Anaconda SEALTITE Type EFST Flexible Liquid Tight Metal Conduit
