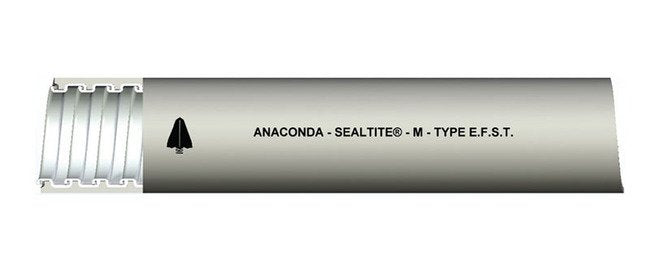

Anaconda SEALTITE Type EFST Flexible Metal Conduit

Name: Anaconda SEALTITE Type EFST Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-b211fb
Price: 699.99 USD
Availability: OutOfStock

SKU:LIQ-b211fb

Anaconda SEALTITE Type EFST - Flexible, liquid-tight, and durable metal conduit for wiring protection. IP 67 rated. Suitable for various applications.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Anaconda SEALTITE Type EFST Flexible Metal Conduit is a versatile solution for liquid-tight raceway applications in various settings. Constructed with a hot-dipped zinc galvanized steel core and a PVC outer jacket, this conduit ensures flexibility and protection for wiring. With IP 67 rating when used with approved end connectors, it guarantees reliable performance. Suitable for general construction applications with a temperature range of -4ºF to +176ºF (-20ºC to +80ºC), this conduit meets RoHS, WEEE, and industry-specific certifications. Anaconda SEALTITE Type EFST is designed for durability and ease of installation, making it a dependable choice for electrical projects.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

21 lbs | 9.53 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

EF | JIC | JIC-3/8 | LT-10 | VF

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

800 ft | 243.84 m

Specifications Optional Colors

Black

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Standard Coils

Specifications Type

EFST

Anaconda SEALTITE Type EFST Flexible Metal Conduit
