Anaconda SEALTITE Type EFST Flexible Metal Conduit (LFMC)

Name: Anaconda SEALTITE Type EFST Flexible Metal Conduit (LFMC)
Brand: Anamet Electrical, Inc.
SKU: LIQ-c7b098
Price: 189.99 USD
Availability: OutOfStock

SKU:LIQ-c7b098

Anaconda SEALTITE Type EFST Flexible Metal Conduit - Flexible, liquid-tight, zinc galvanized steel core with PVC jacket. IP 67 rated and RoHS WEEE compliant.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

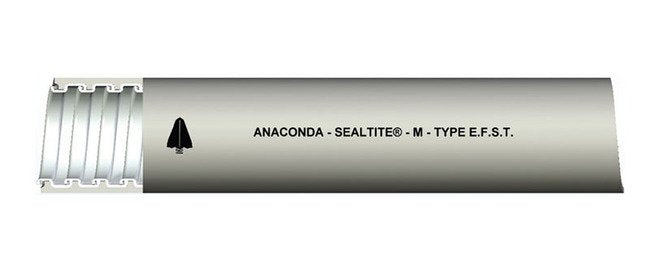

The Anaconda SEALTITE Type EFST Flexible Metal Conduit (LFMC) offers a reliable and flexible liquid-tight raceway for wiring applications. Constructed with a hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit provides superior protection for electrical conductors in a temperature range of -4ºF to +176ºF. Approved for IP 67 rating when installed with standard liquid-tight connectors, it delivers durability and safety where agency approvals are not mandated. Ideal for general construction-grade use, this conduit is available in various trade sizes from 1/4" to 6", meeting industry certifications like RoHS WEEE and liquid-tight standards.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST.Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

15 lbs | 6.8 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

10012 | LT-516

Specifications Electrical Trade Size

5/16 in | 10 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.390 to 0.405 in | 9.906 to 10.287 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

500 ft | 152.4 m

Specifications Optional Colors

Black

Specifications Outside Diameter

0.560 to 0.575 in | 14.224 to 14.605 mm

Specifications Packaging

Standard Package

Specifications Type

EFST

Anaconda SEALTITE Type EFST Flexible Metal Conduit (LFMC)
