Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit

Name: Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-5921c3
Price: 179.99 USD
Availability: OutOfStock

SKU:LIQ-5921c3

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit - Ideal for high and low-temperature environments, providing superior wiring protection. RoHS & WEEE compliant.

$179.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

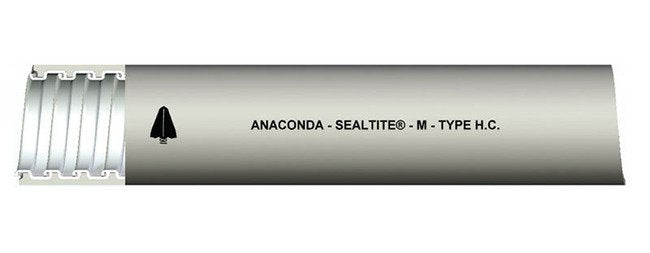

The Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit is engineered for high and low-temperature environments, with a temperature range from -51ºF to +221ºF. This conduit provides a flexible, liquid-tight raceway for wiring, constructed of continuously interlocked hot-dipped zinc-galvanized steel core with a sunlight resistant PVC outer jacket. It is ideal for applications where agency approvals are not required and is IP 67 rated when installed with approved end connectors, ensuring superior wiring protection. Available in 1-inch electrical trade size, with a length of 400 ft in small reels, this conduit is RoHS and WEEE compliant, meeting industry certifications for quality and safety.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

51 lbs | 23.13 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

33104 | AT-13 | HLT-1

Specifications Electrical Trade Size

1 in | 27 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.030 to 1.055 in | 26.162 to 26.797 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

400 ft | 121.92 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

1.290 to 1.315 in | 32.766 to 33.401 mm

Specifications Packaging

Small Reels

Specifications Type

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
