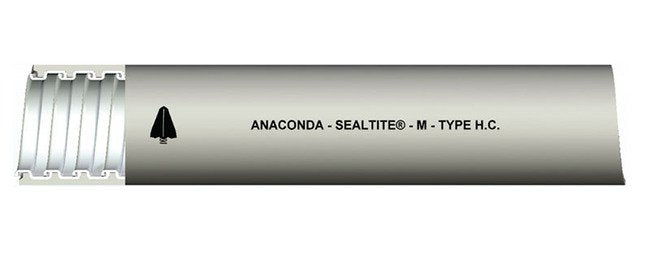

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit

Name: Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-8223e7
Price: 799.99 USD
Availability: OutOfStock

SKU:LIQ-8223e7

Flexible and durable Anaconda SEALTITE Type HC conduit for superior wiring protection in high and low-temperature environments.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

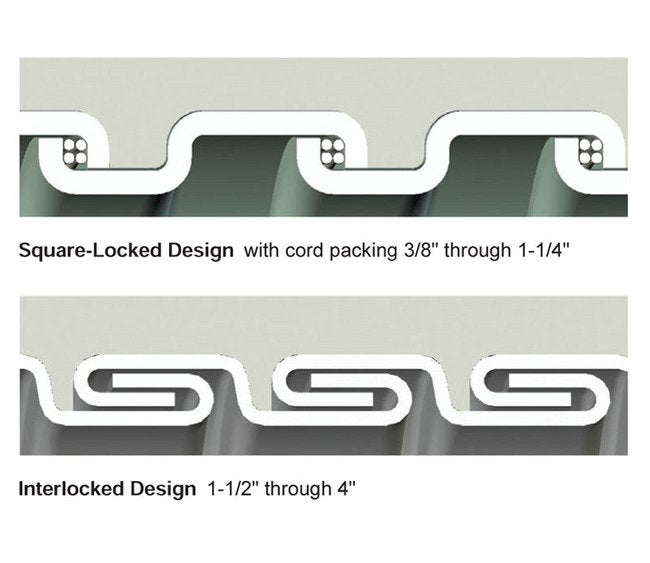

The Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit is designed for high and low-temperature environments, offering a flexible and liquid-tight raceway for wiring. Constructed with interlocked hot-dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit provides superior wiring protection without the need for agency approvals. It is IP 67 rated when installed with approved connectors, suitable for temperatures ranging from -51ºF to +221ºF. Ideal for applications where reliability and flexibility are paramount.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

21 lbs | 9.53 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

30103 | 30104 | AT-10 | HLT

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

800 ft | 243.84 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Small Reels

Specifications Type

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
