Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit

Name: Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-2f861b
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-2f861b

Flexible, durable, and liquid-tight conduit for high and low-temperature wiring protection. IP 67 rated. Ideal for agency approval-not-required applications.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

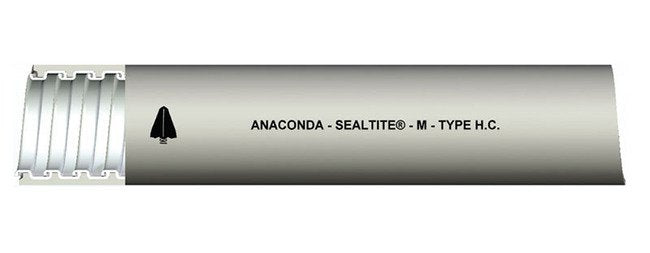

The Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit provides a reliable and durable solution for high and low-temperature environments. Constructed with a galvanized steel core and a PVC outer jacket, this conduit offers flexibility while ensuring liquid-tight protection for wiring. With an IP 67 rating when used with approved connectors, it meets industry standards for superior wiring protection. Ideal for a temperature range of -51ºF to +221ºF (-46ºC to +105ºC), this conduit is suitable for various applications where agency approvals are not required.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

32102 | AT-12 | HLT-3/4

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Small Cartons

Specifications Type

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
