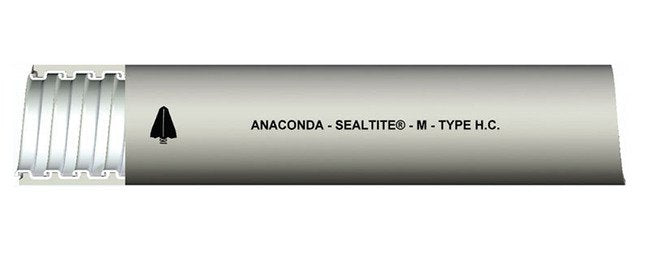

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit

Name: Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-42c089
Price: 399.99 USD
Availability: OutOfStock

SKU:LIQ-42c089

Flexible, durable, and liquid-tight metal conduit for extreme temperature conditions, ensuring superior wiring protection.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

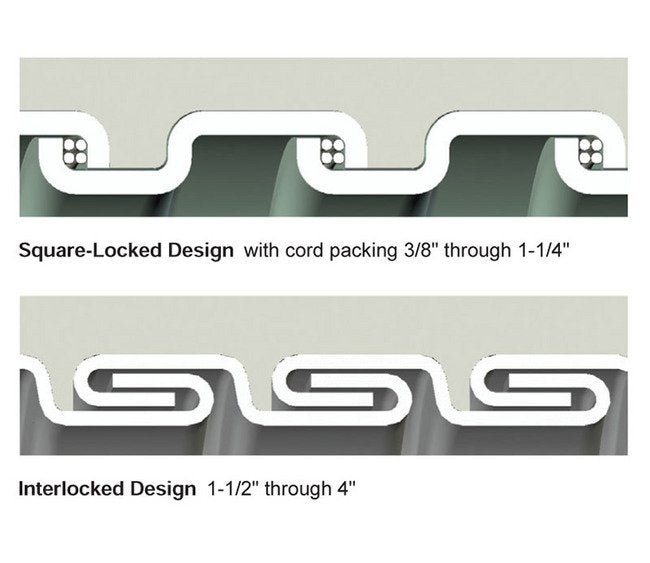

The Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit is designed to withstand extreme temperature conditions, offering a flexible and durable solution for wiring applications. Constructed with a continuously interlocked hot dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit ensures a secure and liquid-tight raceway for electrical conductors. With an IP 67 rating when used with approved connectors, it delivers superior wiring protection in high and low temperature environments. Ideal for applications not requiring agency approvals, this conduit is RoHS WEEE certified and provides a temperature range of -51ºF to +221ºF (-46ºC to +105ºC).

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

25 lbs | 11.34 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

31103 | AT-11 | HLT

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.620 to 0.640 in | 15.748 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

500 ft | 152.4 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Small Reels

Specifications Type

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
