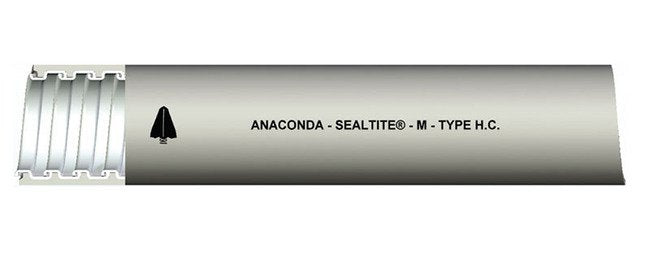

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit

Name: Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-b41b72
Price: 499.99 USD
Availability: OutOfStock

SKU:LIQ-b41b72

Anaconda SEALTITE Type HC: Flexible, liquid-tight conduit for extreme temperature conditions, RoHS and WEEE certified.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

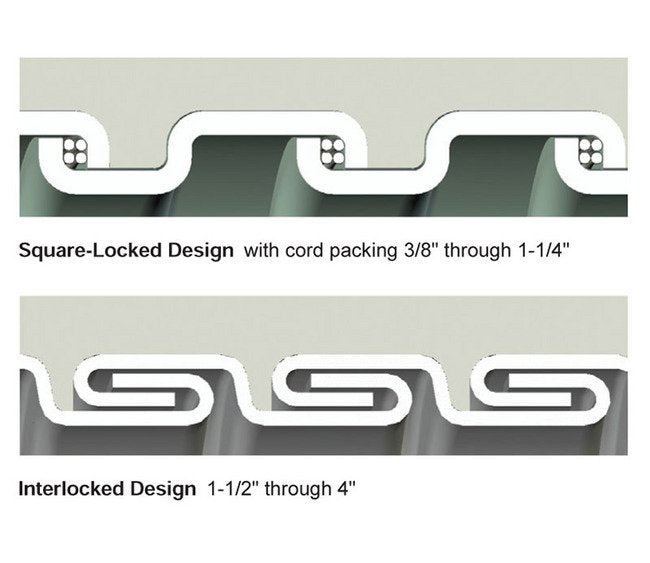

The Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit is designed to withstand extreme temperature conditions, offering a reliable and flexible solution for wiring applications. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit provides a liquid-tight raceway for electrical conductors. With an IP 67 rating when used with approved connectors, it ensures superior wiring protection without the need for agency approvals. Suitable for high and low-temperature environments, this conduit is RoHS and WEEE certified, ensuring compliance with environmental regulations.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

32104 | AT-12 | HLT-3/4

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

500 ft | 152.4 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Small Reels

Specifications Type

Anaconda SEALTITE Type HC Liquid-Tight Flexible Metal Conduit
