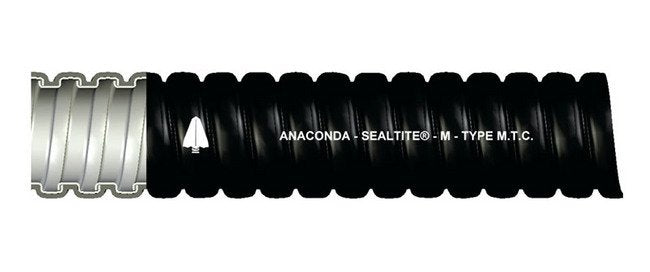

The Anaconda SEALTITE Type MTC Flexible Machine Tool Conduit is designed to provide a durable and flexible liquid-tight raceway for wiring applications. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit ensures superior wiring protection. With an IP 67 rating when used with approved connectors, it is ideal for machine centers and robotics. The conduit is RoHS and WEEE certified, and it offers a temperature range of -4°F to +140°F, meeting industry standards for reliable performance in various environments.
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0

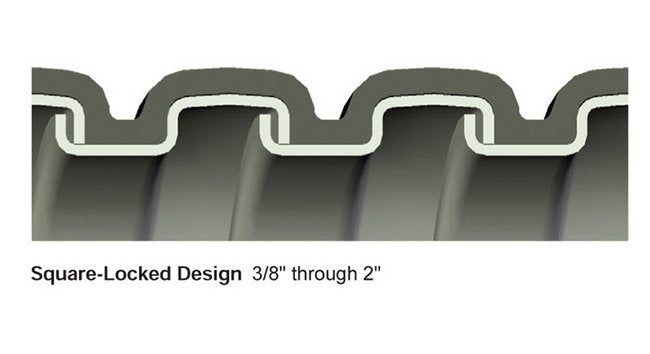

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
2.0 in | 50.8 mm
Specifications Approx Weight Per 100 Ft
20 lbs | 9.07 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89211 | MTLT | MTLT-1/2 | VJC-11
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.620 to 0.640 in | 15.748 to 16.256 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
500 ft | 152.4 m
Specifications Outside Diameter
0.818 to 0.843 in | 20.777 to 21.412 mm
Specifications Packaging
Small Reels
Specifications Type
MTC
