Anaconda SEALTITE Type MTC - Liquid-Tight Flexible Metal Conduit
Anaconda SEALTITE Type MTC - Liquid-Tight Flexible Metal Conduit
SKU:LIQ-cfcb3e
Anaconda SEALTITE Type MTC - Premium liquid-tight flexible conduit for machine centers & robotics. IP 67 rated. Durable & reliable.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Anaconda SEALTITE Type MTC - Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Anaconda SEALTITE Type MTC - Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

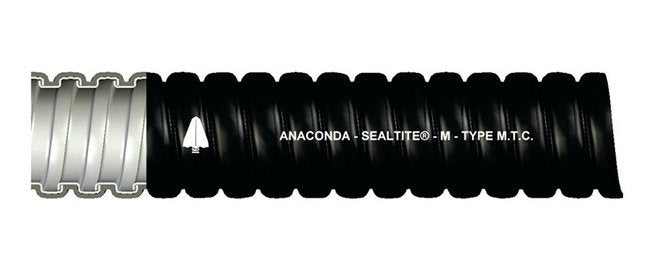

The Anaconda SEALTITE Type MTC is a premium liquid-tight flexible metal conduit designed to provide a superior wiring solution for machine centers and robotics applications. This conduit features a sunlight-resistant PVC outer jacket over a hot dipped zinc galvanized steel core, offering flexibility and durability. With an IP 67 rating when used with approved connectors, this conduit ensures a liquid-tight raceway for electrical conductors, providing protection and reliability in diverse environments. Suitable for a temperature range of -4°F to +140°F, the Type MTC conduit is ideal for installations where agency approvals are not required, making it a versatile and efficient choice for your wiring needs.
Product Specifications
Application 0
Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)
Installation 0

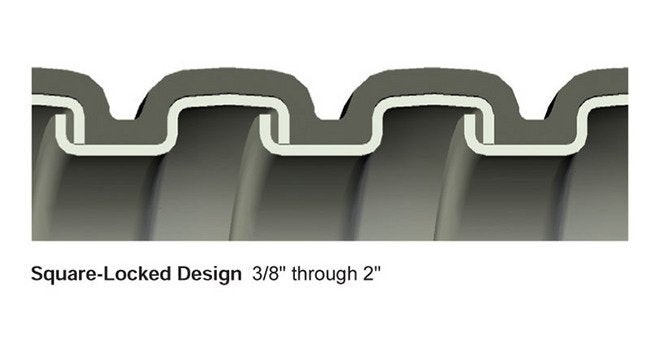

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
1.5 in | 38.1 mm
Specifications Approx Weight Per 100 Ft
16 lbs | 7.26 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
89201 | MTLT | MTLT-3/8 | VJC-10
Specifications Electrical Trade Size
3/8 in | 12 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.485 to 0.505 in | 12.319 to 12.827 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
0.679 to 0.704 in | 17.247 to 17.882 mm
Specifications Packaging
Standard Carton
Specifications Type
MTC
