Anaconda SEALTITE Type MTC Liquid-Tight Flexible Metal Conduit

Name: Anaconda SEALTITE Type MTC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-5c3ec6
Price: 239.99 USD
Availability: OutOfStock

SKU:LIQ-5c3ec6

Premium liquid-tight flexible metal conduit for superior wiring protection. IP 67 rated. Ideal for machine centers & robotics.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

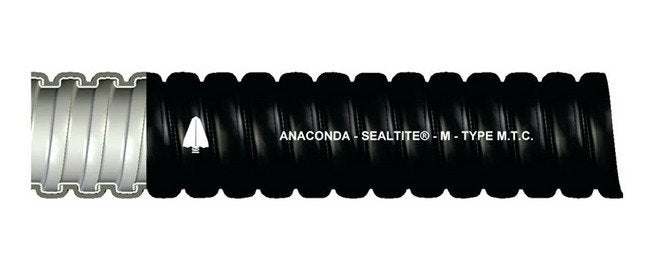

The Anaconda SEALTITE Type MTC Liquid-Tight Flexible Metal Conduit is a premium solution for wiring applications that require flexibility and durability. Constructed with a zinc galvanized steel core and a PVC outer jacket, this conduit provides a secure liquid-tight raceway for wiring, ensuring superior protection. With an IP 67 rating when paired with approved connectors, it meets the highest industry standards for ingress protection. Suitable for machine centers and robotics, this conduit is extra flexible and operates within a temperature range of -4°F to +140°F (-20°C to +60°C). Manufactured in various trade sizes, it offers ease of installation with standard liquid-tight connectors.

Product Specifications

Application 0

Extra Flexible. For Use in Machine Centers and RoboticsTemperature Range: -4°F to +140°F (-20°C to +60°C)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +140ºF (-20ºC to +60ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

5.0 in | 127 mm

Specifications Approx Weight Per 100 Ft

87 lbs | 39.46 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

89262 | MTLT | MTLT-2 | VJC-16

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.010 to 2.035 in | 51.054 to 51.689 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

50 ft | 15.24 m

Specifications Outside Diameter

2.270 to 2.300 in | 57.658 to 58.420 mm

Specifications Packaging

Standard Carton

Specifications Type

MTC

Anaconda SEALTITE Type MTC Liquid-Tight Flexible Metal Conduit
