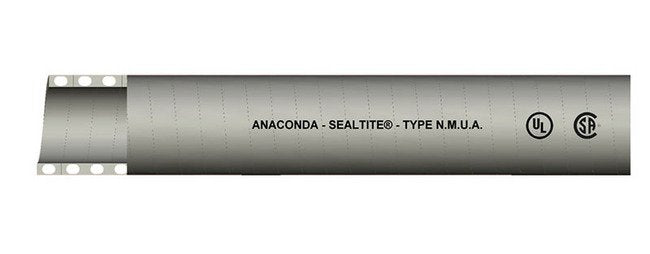

Anaconda SEALTITE Type NMUA LFNC-B Conduit
Anaconda SEALTITE Type NMUA LFNC-B Conduit
SKU:LIQ-a50881
Enhance your electrical systems with Anaconda SEALTITE Type NMUA LFNC-B Conduit for durable, safe, and compliant installations.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Anaconda SEALTITE Type NMUA LFNC-B Conduit
$159.99
Quantity: 1
Claim Your Seller Account
Anaconda SEALTITE Type NMUA LFNC-B Conduit
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electrical installations with the Anaconda SEALTITE Type NMUA LFNC-B Conduit. This non-conductive, liquid-tight, and flexible conduit is made of durable PVC, suitable for inside, outside, and corrosive environments. With UL and CSA certifications, this conduit meets Article 356 NEC standards, providing a temperature range of -17ºF to +176ºF. Easy to install with standard connectors, this conduit is IP 67 rated when paired with approved end connectors. Approved for direct burial and concrete applications, it complies with relevant industry regulations for optimal performance and safety.
Product Specifications
Application 0
General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).
Installation 0

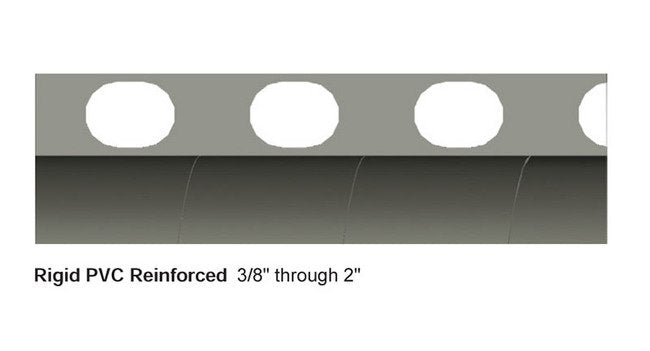

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".
Nec Articles 0
Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
4.5 in | 114.3 mm
Specifications Approx Weight Per 100 Ft
16 lbs | 7.26 kg
Specifications Color
GRAY
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
55-09-63-01 | 6003-46-00 | 81024 | LFNC-B | NM | NM-12 | NMUA | NMUA-3/4
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 65/66/67
Specifications Inside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
700 ft | 213.36 m
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Standard Reels
Specifications Type
NMUA
