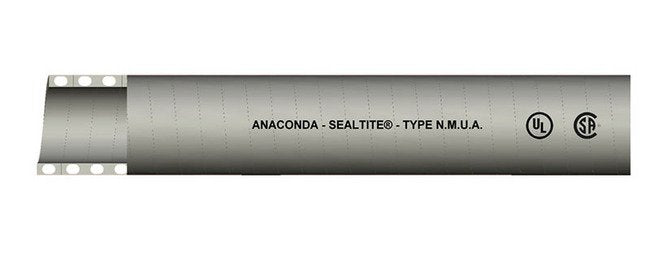

Anaconda SEALTITE Type NMUA - Liquid Tight Non-Metallic Conduit

Name: Anaconda SEALTITE Type NMUA - Liquid Tight Non-Metallic Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-86ce53
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-86ce53

Anaconda NMUA - Flexible, Liquid Tight Non-Metallic Conduit for diverse applications.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Anaconda SEALTITE Type NMUA is a versatile non-metallic conduit designed for inside, outside, and corrosive applications, compliant with NEC Article 356. This flexible conduit, with an IP 67 rating when used with approved end connectors, offers a temperature range of -17ºF to +176ºF (-27ºC to +80ºC). UL listed and CSA certified as Type 'B', this conduit ensures safety and reliability for various installations.

Product Specifications

Application 0

General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).

Installation 0

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".

Nec Articles 0

Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

4.5 in | 114.3 mm

Specifications Approx Weight Per 100 Ft

16 lbs | 7.26 kg

Specifications Color

GRAY

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

58-04-63-01 | 6003-30-00 | 81022 | LFNC-B | NM | NM-12 | NMUA | NMUA-3/4

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 65/66/67

Specifications Inside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Standard Carton

Specifications Type

NMUA

Anaconda SEALTITE Type NMUA - Liquid Tight Non-Metallic Conduit
