Anaconda SEALTITE Type NMUA Liquid-Tight Non-Metallic Conduit
Anaconda SEALTITE Type NMUA Liquid-Tight Non-Metallic Conduit
SKU:LIQ-8f781e
UL listed Type NMUA Non-Metallic Conduit suitable for diverse applications. Temperature range: -17ºF to +176ºF. Easy installation.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Anaconda SEALTITE Type NMUA Liquid-Tight Non-Metallic Conduit
$239.99
Quantity: 1
Claim Your Seller Account
Anaconda SEALTITE Type NMUA Liquid-Tight Non-Metallic Conduit
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

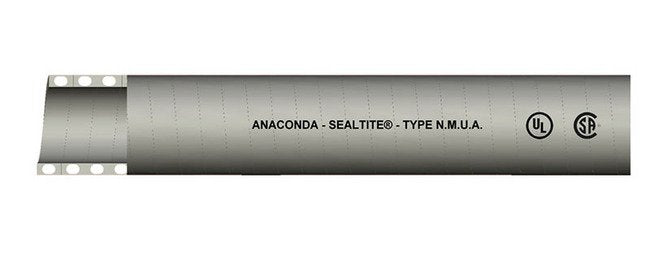

The Anaconda SEALTITE Type NMUA Liquid-Tight Non-Metallic Conduit is a versatile solution for inside, outside, and corrosive applications. This UL listed and CSA certified conduit is designed for a temperature range of -17ºF to +176ºF and features a non-metallic PVC construction. With excellent ingress protection and IP 67 rating with approved end connectors, this conduit meets NEC standards and is easy to install, making it ideal for a wide range of electrical applications.
Product Specifications
Application 0
General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).
Installation 0

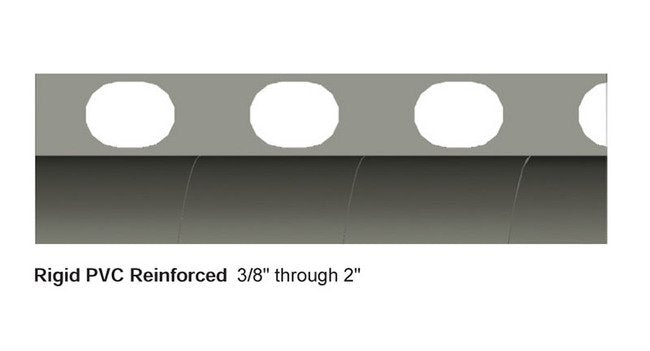

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".
Nec Articles 0
Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
6.5 in | 165.1 mm
Specifications Approx Weight Per 100 Ft
26 lbs | 11.79 kg
Specifications Color
GRAY
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
55-09-44-04 | 6004-45-00 | 81034 | LFNC-B | NM | NM-13 | NMUA | NMUA-1
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 65/66/67
Specifications Inside Diameter
1.041 to 1.066 in | 26.441 to 27.076 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
500 ft | 152.4 m
Specifications Outside Diameter
1.290 to 1.315 in | 32.766 to 33.401 mm
Specifications Packaging
Standard Reels
Specifications Type
NMUA
