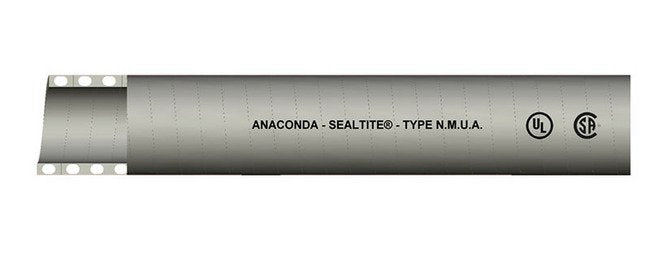

Anaconda SEALTITE Type NMUA Non-Metallic Liquid-Tight Conduit
Anaconda SEALTITE Type NMUA Non-Metallic Liquid-Tight Conduit
SKU:LIQ-082e8c
Anaconda SEALTITE Type NMUA - Non-Metallic Liquid-Tight Conduit for versatile applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Anaconda SEALTITE Type NMUA Non-Metallic Liquid-Tight Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Anaconda SEALTITE Type NMUA Non-Metallic Liquid-Tight Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Anaconda SEALTITE Type NMUA Non-Metallic Liquid-Tight Conduit (LFNC) is a versatile solution for inside, outside, and corrosive applications, meeting the stringent requirements of Article 356 of the National Electric Code. With a durable PVC construction, this conduit offers a temperature range of -17ºF to +176ºF, UL listing, and CSA certification as a Type 'B' non-metallic conduit. Easy to install with standard connectors, this liquid-tight conduit is IP 67 rated when used with approved end connectors, ensuring reliable performance in diverse environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0

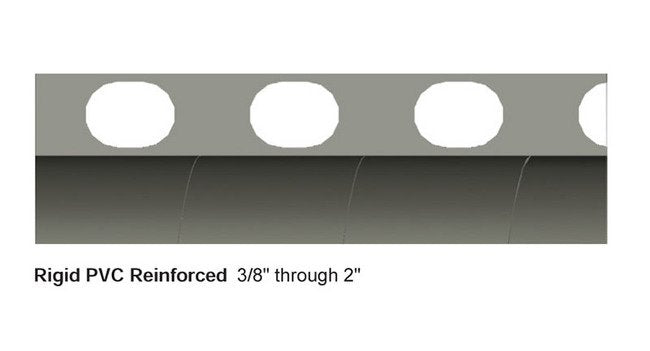

General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).
Installation 0
Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".
Nec Articles 0
Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
11.0 in | 279.4 mm
Specifications Approx Weight Per 100 Ft
62 lbs | 28.12 kg
Specifications Color
GRAY
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
55-09-48-01 | 6007-24-00 | 81062 | LFNC-B | NM | NM-16 | NMUA | NMUA-2
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 65/66/67
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Standard Carton
Specifications Type
NMUA
