Anaconda SEALTITE Type NWC LFMC - Nuclear Wiring Conduit

Name: Anaconda SEALTITE Type NWC LFMC - Nuclear Wiring Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-4ff38e
Price: 79.99 USD
Availability: OutOfStock

SKU:LIQ-4ff38e

Anaconda SEALTITE Type NWC LFMC - Flexible and radiation-resistant conduit for nuclear wiring applications, compliant with IEEE standards.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

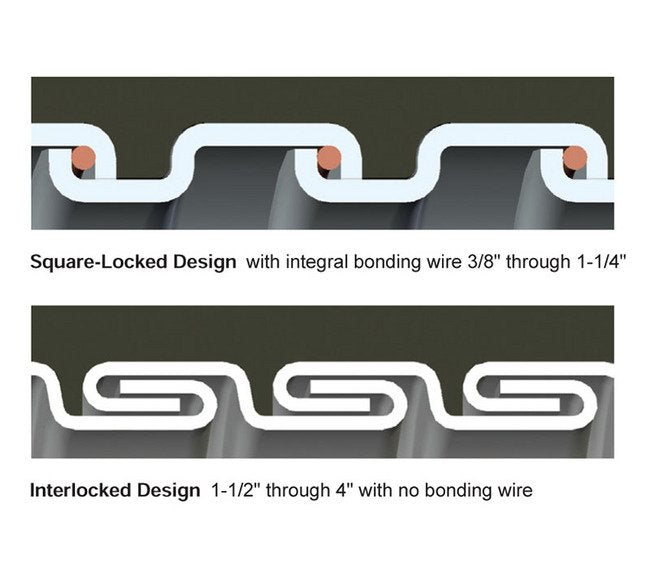

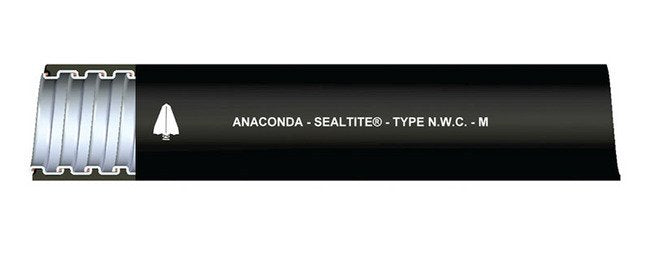

The Anaconda SEALTITE Type NWC LFMC is a premium liquid-tight flexible metal conduit designed for nuclear applications. Its construction features a continuously interlocked hot-dipped zinc galvanized steel core with a black radiation-resistant polyethylene jacket. This conduit provides a flexible and reliable liquid-tight raceway for wiring, meeting IEEE 323-1974 and IEEE 383-1974 guidelines. With an IP 67 rating and suitable for use within nuclear containment areas, this conduit ensures safe and durable wiring installations in challenging environments with a temperature range of -40ºF to +192ºF (-40ºC to +89ºC). Trusted by the Nuclear Procurement Issues Committee (NUPIC) with NUPIC number 2651, this conduit guarantees quality and compliance in nuclear procurement.

Product Specifications

Application 0

Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".

Listing 0

NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651

Specifications Approx Inside Bend Radius

30 in | 762 mm

Specifications Approx Weight Per 100 Ft

255 lbs | 115.67 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Electrical Trade Size

3 in | 78 mm

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

3.070 to 3.100 in | 77.978 to 78.740 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyethylene

Specifications Length

25 ft | 7.62 m

Specifications Outside Diameter

3.460 to 3.500 in | 87.884 to 88.900 mm

Specifications Packaging

Standard Carton

Specifications Type

NWC
