Anaconda SEALTITE Type NWC Nuclear Wiring Conduit LFMC 1 inch - Black
Anaconda SEALTITE Type NWC Nuclear Wiring Conduit LFMC 1 inch - Black
SKU:LIQ-386a40
Flexible and radiation-resistant nuclear wiring conduit for high-performance industrial applications.
Regular price
$245.99
Regular price
Sale price
$245.99
Unit price
per
Initiate Order
Anaconda SEALTITE Type NWC Nuclear Wiring Conduit LFMC 1 inch - Black
$245.99
Quantity: 1
Claim Your Seller Account
Anaconda SEALTITE Type NWC Nuclear Wiring Conduit LFMC 1 inch - Black
$245.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

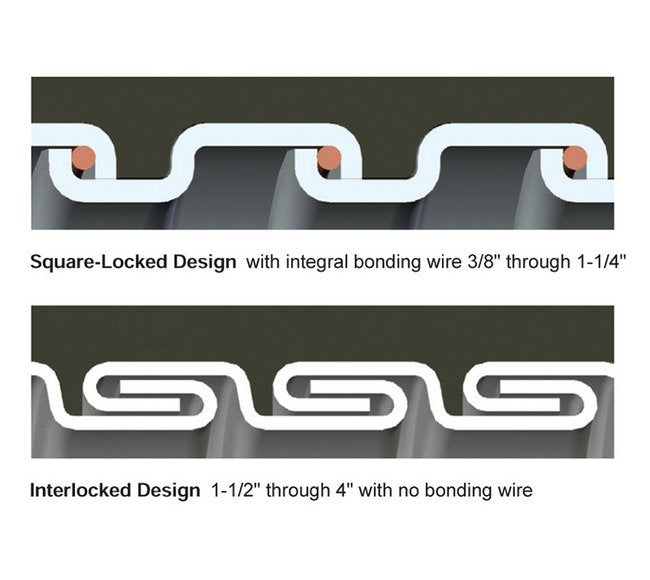

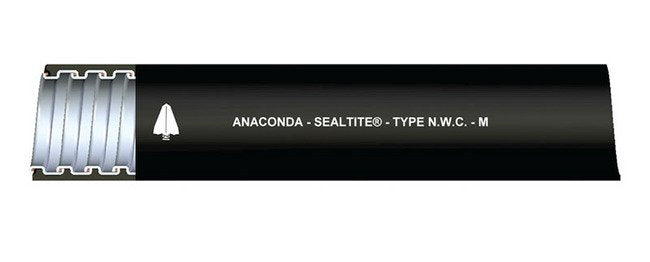

The Anaconda SEALTITE Type NWC Nuclear Wiring Conduit LFMC offers a reliable and flexible liquid-tight raceway solution for nuclear applications and areas requiring radiation protection. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a radiation-resistant black polyethylene jacket, this conduit meets stringent IEEE 323-1974 and IEEE 383-1974 guidelines. It comes in a length of 100ft with an IP66/67 rating, suitable for temperatures from -40ºF to +192ºF (-40ºC to +89ºC), making it ideal for various industrial environments.
Product Specifications
Application 0
Nuclear Application or Where Radiation Protection is NecessaryTemperature Range: -40ºF to +192ºF (-40ºC to +89ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Suitable for use within nuclear containment areas.Flexible metal core meets "Construction" requirements of UL Std. 360 sizes 3/8" through 4".Radiation resistant jacket meets IEEE 323-1974 and IEEE 383-1974 guidelines.Rated for temperature range of -40ºF to + 192ºF (-40ºC to +89ºC).Manufactured in a full range of sizes from 3/8" through 4".
Listing 0
NUCLEAR PROCURMENT ISSUES COMMITTEE (NUPIC) NUPIC number 2651
Specifications Approx Inside Bend Radius
15 in | 381 mm
Specifications Approx Weight Per 100 Ft
73 lbs | 33.11 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.041 to 1.066 in | 26.441 to 27.076 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyethylene
Specifications Length
100 ft | 30.48 m
Specifications Outside Diameter
1.290 to 1.315 in | 32.766 to 33.401 mm
Specifications Packaging
Standard Carton
Specifications Type
NWC
