Anaconda SEALTITE ZHUA Zero Halogen LFMC Conduit 2-1/2 in
Anaconda SEALTITE ZHUA Zero Halogen LFMC Conduit 2-1/2 in
SKU:LIQ-1f0963
Anaconda SEALTITE ZHUA Zero Halogen-Low Smoke-Low Flame Spread Liquid-Tight Flexible Metal Conduit (LFMC) for secure wiring installations.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Anaconda SEALTITE ZHUA Zero Halogen LFMC Conduit 2-1/2 in
$149.99
Quantity: 1
Claim Your Seller Account
Anaconda SEALTITE ZHUA Zero Halogen LFMC Conduit 2-1/2 in
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

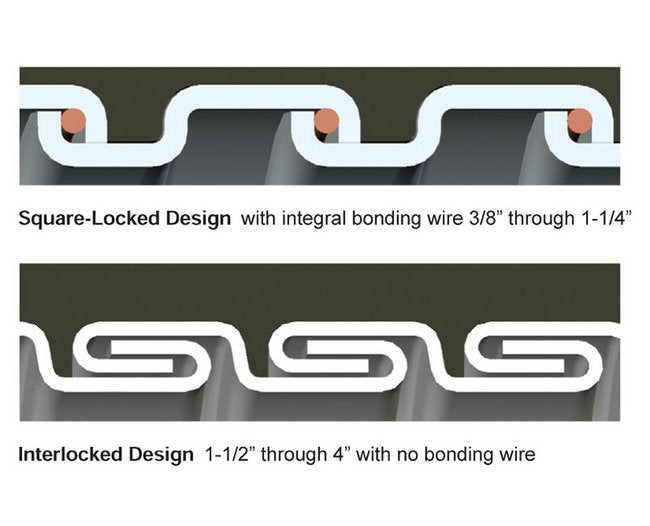

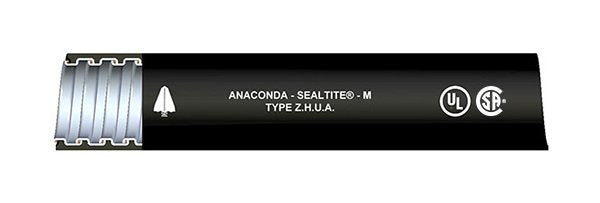

The Anaconda SEALTITE ZHUA Zero Halogen-Low Smoke-Low Flame Spread Liquid-Tight Flexible Metal Conduit (LFMC) is designed to provide a flexible and liquid-tight raceway for wiring applications. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a flame-retardant TPU jacket, it ensures safety and durability. This UL Listed conduit is suitable for both exposed and concealed locations, offering an IP 67 rating when installed with approved connectors. With a core material of galvanized steel and a jacket made of Thermoplastic Polyurethane, this conduit meets various industry certifications and standards while being suitable for hazardous locations per NEC regulations.
Product Specifications
Application 0
For Restricted or Self-Contained Ventilation AreasTemperature ranges -40°F to + 176°F (-40°C to +80°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Approved for both exposed and concealed locations. Rated for temperature ranges -40ºF to + 176ºF (-40ºC to +80ºC). Approved as an equipment grounding conductor in sizes 3/8" through 1-1/4" if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8" and 1/2" and 60 amps or less for 3/4" through 1-1/4". Suitable for use in hazardous locations per NEC Article 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Manufactured in a full range of sizes from 3/8" through 4". Approved for direct burial and in concrete trade sizes 3/8" through 4". Complies with UL Standard 360 File No. E18917; and NEC Article 350.
Meets Or Exceeds The Following Standards 0
Flame Spread Index ASTM E162Smoke Density (Generation) ASTM E662Toxic Gas Generation Bombardier SMP-800CJacket Material is U.L. 94 CertifiedConduit is U.L. 360 Listed
Nec Articles 0
Article 250.118 (6) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 350 Liquid-Tight Flexible Metal Conduit (LFMC) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring Methods Article 645.5 (E) (2) Under Raised Floors
Specifications Approx Weight Per 100 Ft
182 lbs | 82.55 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
6708-22-00 | 88172 | LSZH | ZHLA-17
Specifications Electrical Trade Size
2-1/2 in | 63 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
9.5 in | 241.3 mm
Specifications Inside Diameter
2.480 to 2.505 in | 62.992 to 63.627 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
25 ft | 7.62 m
Specifications Note
Colors are available upon request.Test data results obtained from an independent test laboratory. Consult factory for additional details.
Specifications Outside Diameter
2.840 to 2.875 in | 72.136 to 73.025 mm
Specifications Packaging
Standard Carton
Specifications Type
ZHUA
