Anaconda Type CNP Liquid-Tight Non-Metallic Conduit
Anaconda Type CNP Liquid-Tight Non-Metallic Conduit
SKU:LIQ-f09b55
Anaconda Type CNP Liquid-Tight Non-Metallic Conduit - UL Listed, CSA Certified, IP 67 Rated. Durable, easy to install, and crush-resistant.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Anaconda Type CNP Liquid-Tight Non-Metallic Conduit
$249.99
Quantity: 1
Claim Your Seller Account
Anaconda Type CNP Liquid-Tight Non-Metallic Conduit
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

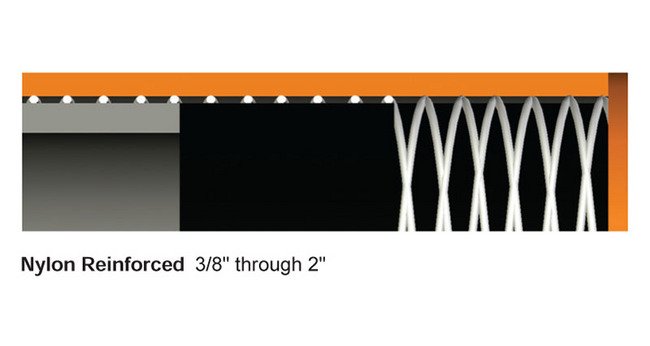

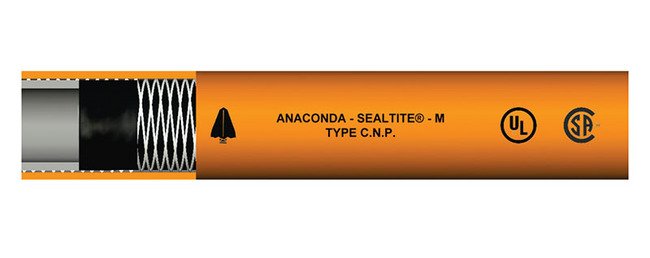

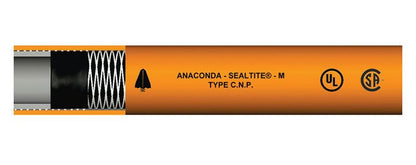

The Anaconda Type CNP Nonconductive Conduit offers a durable and reliable solution for liquid-tight raceway wiring applications. Constructed with a smooth inner thermoplastic PVC core and oil/sunlight resistant PVC outer cover, reinforced with a nylon layer, this conduit is UL listed and CSA certified as a Type 'A' non-metallic conduit. With a temperature range of -4ºF to +140ºF (-20ºC to +60ºC) and IP 67 rating when paired with approved connectors, it provides flexibility, crush resistance, and ease of installation for various industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
8.0 in | 203.2 mm
Specifications Approx Weight Per 100 Ft
81 lbs | 36.74 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6506-24-00 | 87504 | LFNC-A | LNM-P 15
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.585 to 1.620 in | 40.259 to 41.148 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
2.045 to 2.080 in | 51.943 to 52.832 mm
Specifications Packaging
Reels
Specifications Type
CNP
