Anaconda Type DE-710 Flexible Metal Conduit

Name: Anaconda Type DE-710 Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-b50532
Price: 29.99 USD
Availability: OutOfStock

SKU:FLE-b50532

Anaconda Type DE-710 Heavy-Duty Flexible Metal Conduit - Ideal for OEMs and industrial applications, UL recognized for safety and reliability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

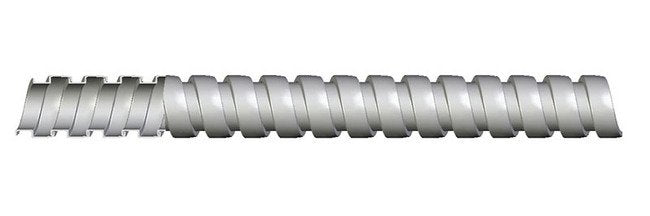

The Anaconda Type DE-710 Heavy-Duty Flexible Metal Conduit is a top choice for OEMs and industrial applications. Constructed with a continuously interlocked hot dipped zinc galvanized steel core, this conduit offers exceptional crush and corrosion resistance. UL recognized as part of a manufactured wiring system, it ensures safety and reliability. With a flexible design, it allows for tight bends while maintaining durability. Ideal for office furnishings, workstations, and partitions, this conduit meets NEC Article 604 Manufactured Wiring Systems standards with a temperature resistance of up to +450°F.

Product Specifications

Application 0

Extra FlexibleExtra Strength+450°F Maximum Temperature

Installation 0

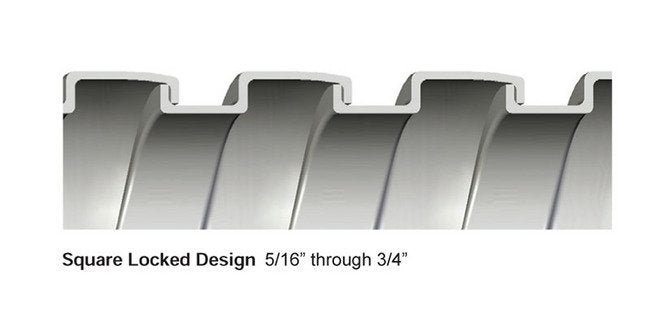

Used in office furnishings, work stations and partitions.Exceptional flexibility for tight "U" bend radius.Complies with UL Recognized File No. E-39679; DXUZ2. Size range, actual I.D. 5/16" through 3/4".Available in custom-cut lengths.+450ºF maximum temperature.

Nec Articles 0

Article 604 Manufactured Wiring Systems

Specifications Approx Inside Bend Radius

1.25 in | 31.75 mm

Specifications Approx Weight Per 100 Ft

12 lbs | 5.44 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5101-24-00 | 5101-30-00 | 5101-42-00 | 55-28-34-01 | 55-28-34-02 | 55-28-34-03 | 92402 | AFS | AFS-3/8 | FlexCon Extra | SLINKY FLEX | USL-380

Specifications Industry Certifications

RU Certification

Specifications Inside Diameter

0.375 to 0.400 in | 9.525 to 10.160 mm

Specifications Jacket Material

None

Specifications Length

Custom

Specifications Nominal Size

3/8 in | 9 mm

Specifications Note

Longer length reels available on request - consult factory.

Specifications Outside Diameter

0.519 to 0.544 in | 13.183 to 13.818 mm

Specifications Packaging

Contact Anamet

Specifications Type

DE - 710
