Anaconda Type DE-710 Flexible Metal Conduit
Anaconda Type DE-710 Flexible Metal Conduit
SKU:FLE-96033b
Anaconda Type DE-710 - Heavy-Duty, Extra Flexible UL Recognized Conduit for OEMs, with superior crush and corrosion resistance
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Anaconda Type DE-710 Flexible Metal Conduit
$39.99
Quantity: 1
Claim Your Seller Account
Anaconda Type DE-710 Flexible Metal Conduit
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

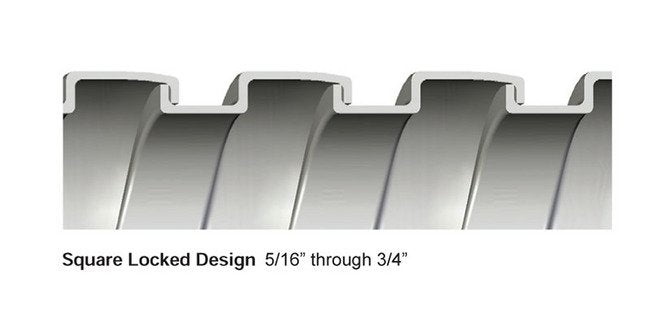

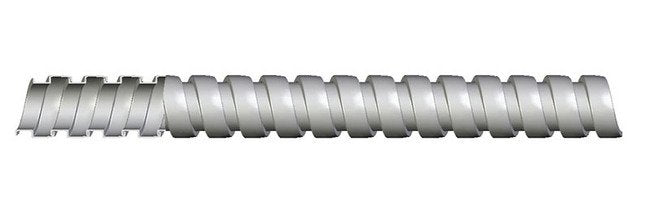

The Anaconda Type DE-710 Heavy-Duty Flexible Metal Conduit is designed for OEM and industrial applications, offering exceptional flexibility and crush resistance. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core, this UL recognized component ensures superior corrosion resistance. Ideal for tight bend radius installations, it features a nominal size of 3/4 inches with custom lengths available upon request. With RU Certification and compliance with Article 604 Manufactured Wiring Systems, this conduit meets high industry standards for durability and performance.
Product Specifications
Application 0
Extra FlexibleExtra Strength+450°F Maximum Temperature
Installation 0
Used in office furnishings, work stations and partitions.Exceptional flexibility for tight "U" bend radius.Complies with UL Recognized File No. E-39679; DXUZ2. Size range, actual I.D. 5/16" through 3/4".Available in custom-cut lengths.+450ºF maximum temperature.
Nec Articles 0
Article 604 Manufactured Wiring Systems
Specifications Approx Inside Bend Radius
2.25 in | 57.15 mm
Specifications Approx Weight Per 100 Ft
20 lbs | 9.07 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
5103-24-00 | 5103-30-00 | 55-28-39-01 | 97402 | AFS-3/4 | FlexCon Extra | SLINKY FLEX | USL-3/4
Specifications Industry Certifications
RU Certification
Specifications Inside Diameter
0.696 to 0.726 in | 17.678 to 18.440 mm
Specifications Jacket Material
None
Specifications Length
Custom
Specifications Nominal Size
3/4 in | 18 mm
Specifications Note
Longer length reels available on request - consult factory.
Specifications Outside Diameter
0.840 to 0.870 in | 21.336 to 22.098 mm
Specifications Packaging
Contact Anamet
Specifications Type
DE - 710
