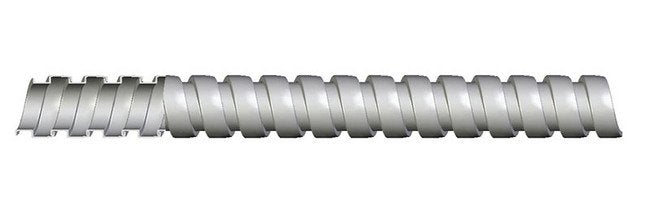

Anaconda Type DE-710 Heavy-Duty Flexible Steel Conduit
Anaconda Type DE-710 Heavy-Duty Flexible Steel Conduit
SKU:FLE-f158b9
Anaconda Type DE-710 Heavy-Duty Flexible Steel Conduit - Extra flexible, crush-resistant, and UL recognized for OEM and industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Anaconda Type DE-710 Heavy-Duty Flexible Steel Conduit
$59.99
Quantity: 1
Claim Your Seller Account
Anaconda Type DE-710 Heavy-Duty Flexible Steel Conduit
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Anaconda Type DE-710 Heavy-Duty Flexible Steel Conduit is a versatile solution designed for OEM and industrial applications. Constructed with continuously interlocked hot dipped zinc galvanized steel core, this conduit offers exceptional crush and corrosion resistance. UL recognized as part of a manufactured wiring system, it meets stringent industry standards for safety and performance. With an inside diameter ranging from 0.562 to 0.587 inches and an outside diameter from 0.708 to 0.731 inches, this conduit provides the flexibility and durability required for various installations. Ideal for office furnishings, work stations, and partitions, it offers extra flexibility with a tight bend radius and can withstand temperatures up to +450°F.
Product Specifications
Application 0
Extra FlexibleExtra Strength+450°F Maximum Temperature
Installation 0

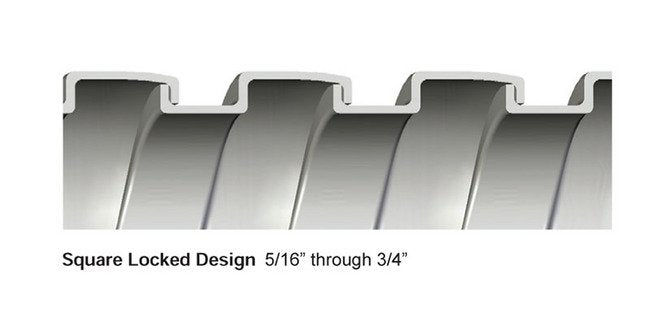

Used in office furnishings, work stations and partitions.Exceptional flexibility for tight "U" bend radius.Complies with UL Recognized File No. E-39679; DXUZ2. Size range, actual I.D. 5/16" through 3/4".Available in custom-cut lengths.+450ºF maximum temperature.
Nec Articles 0
Article 604 Manufactured Wiring Systems
Specifications Approx Inside Bend Radius
1.5 in | 38.1 mm
Specifications Approx Weight Per 100 Ft
16 lbs | 7.26 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
55-28-38-01 | 55-28-38-05 | 95402 | AFS | AFS-9/16 | SLINKY FLEX | USL-9/16
Specifications Industry Certifications
RU Certification
Specifications Inside Diameter
0.562 to 0.587 in | 14.275 to 14.910 mm
Specifications Jacket Material
None
Specifications Length
Custom
Specifications Nominal Size
9/16 in | 14 mm
Specifications Note
Longer length reels available on request - consult factory.
Specifications Outside Diameter
0.708 to 0.731 in | 17.983 to 18.567 mm
Specifications Packaging
Contact Anamet
Specifications Type
DE - 710
