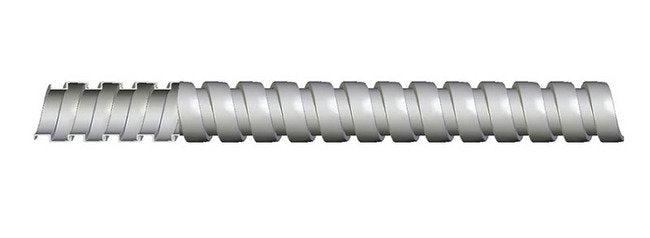

Anaconda Type DSL Flexible Metal Conduit - 1/4 in, Extra Flexible, Uncovered

Name: Anaconda Type DSL Flexible Metal Conduit - 1/4 in, Extra Flexible, Uncovered
Brand: Anamet Electrical, Inc.
SKU: FLE-5cff1a
Price: 99.99 USD
Availability: OutOfStock

SKU:FLE-5cff1a

Anaconda Type DSL Flexible Metal Conduit - 1/4 in, Extra Flexible, Uncovered. Ideal for general electrical applications. RoHS and WEEE certified. +450°F max temp.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Anaconda Type DSL Flexible Metal Conduit is designed for light-duty usage in general electrical applications. Constructed from hot-dipped zinc galvanized steel, this conduit provides a reliable raceway for wiring, ensuring flexibility with an approximate inside bend radius of 1 inch. With industry certifications such as RoHS and WEEE, this conduit is ideal for installations where agency approvals are not mandatory. It offers exceptional flexibility for tight bends, ease of installation with standard connectors, and a high-temperature tolerance of up to +450°F. Custom lengths available upon request.

Product Specifications

Application 0

Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature

Installation 0

Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.

Specifications Approx Inside Bend Radius

1 in | 25.4 mm

Specifications Approx Weight Per 100 Ft

5.8 lbs | 2.63 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

92202 | SF | SF-1/4 | SL-140

Specifications Industry Certifications

RoHS WEEE

Specifications Inside Diameter

0.245 to 0.260 in | 6.223 to 6.604 mm

Specifications Jacket Material

None

Specifications Nominal Size

1/4 in | 6 mm

Specifications Outside Diameter

0.335 to 0.350 in | 8.509 to 8.890 mm

Specifications Standard Length Coil

250 ft | 76.2 m

Specifications Type

DSL

Anaconda Type DSL Flexible Metal Conduit - 1/4 in, Extra Flexible, Uncovered
