Anaconda Type DSL10 Flexible Metal Conduit
Anaconda Type DSL10 Flexible Metal Conduit
SKU:FLE-5cf5cc
Anaconda Type DSL10 Flexible Metal Conduit - Ideal for tight bend applications, RoHS WEEE certified, custom lengths, +450°F temp.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Anaconda Type DSL10 Flexible Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Anaconda Type DSL10 Flexible Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

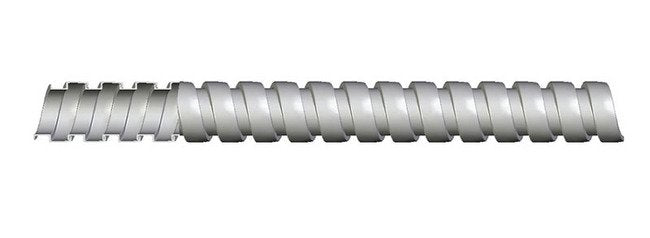

The Anaconda Type DSL10 Flexible Metal Conduit is a premium solution for light-duty, general electrical applications. Constructed from continuously interlocked hot dipped zinc galvanized steel, this conduit provides a reliable raceway for wiring. With a nominal size of 5/8 inch and exceptional flexibility, it is ideal for installations requiring tight bends. This all-purpose conduit boasts RoHS WEEE certifications, ensuring compliance with environmental standards, making it a versatile and eco-friendly choice for mechanical protection in various settings. Available in custom-cut lengths, it offers ease of installation and a high temperature resistance of up to +450°F.
Product Specifications
Application 0
Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature
Installation 0
Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.
Specifications Approx Inside Bend Radius
2.0 in | 50.8 mm
Specifications Approx Weight Per 100 Ft
19.1 lbs | 8.66 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
SF | SF-5/8
Specifications Industry Certifications
RoHS WEEE
Specifications Inside Diameter
0.618 to 0.638 in | 15.697 to 16.205 mm
Specifications Jacket Material
None
Specifications Nominal Size
5/8 in | 16 mm
Specifications Outside Diameter
0.743 to 0.763 in | 18.872 to 19.380 mm
Specifications Standard Length Coil
150 ft | 45.72 m
Specifications Type
DSL
