Anaconda Type DSL12 Flexible Metal Conduit
Anaconda Type DSL12 Flexible Metal Conduit
SKU:FLE-1fbfd7
Anaconda Type DSL12: Flexible, durable conduit for light-duty electrical applications. Easy to install with exceptional flexibility.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Anaconda Type DSL12 Flexible Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Anaconda Type DSL12 Flexible Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

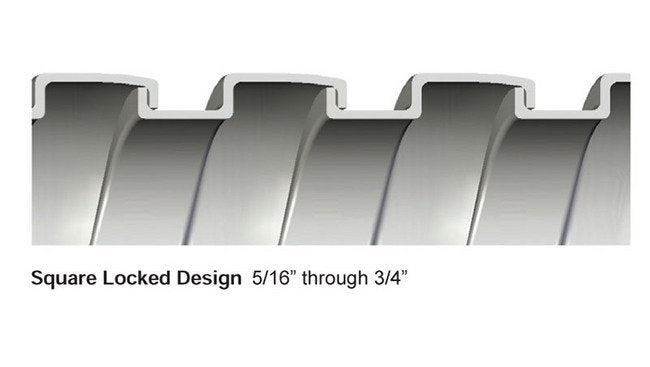

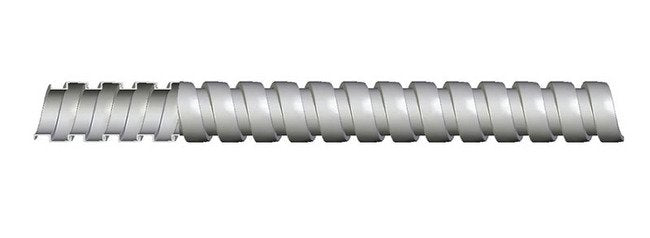

The Anaconda Type DSL12 Flexible Metal Conduit is a durable solution designed for light-duty, general electrical applications. Constructed from continuously interlocked hot-dipped zinc galvanized steel, this conduit provides a safe and reliable raceway for wiring. With a nominal size of 3/4 inch and exceptional flexibility, it allows for tight bends without compromising performance. Ideal for applications where agency approvals are not required, this conduit offers ease of installation with standard connectors and a high temperature tolerance of up to +450°F.
Product Specifications
Application 0
Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature
Installation 0
Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.
Specifications Approx Inside Bend Radius
2.0 in | 50.8 mm
Specifications Approx Weight Per 100 Ft
22.9 lbs | 10.39 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
98202 | 98222 | SF-3/4 | SL-12 | SL-340
Specifications Industry Certifications
RoHS WEEE
Specifications Inside Diameter
0.740 to 0.770 in | 18.796 to 19.558 mm
Specifications Jacket Material
None
Specifications Nominal Size
3/4 in | 19 mm
Specifications Outside Diameter
0.865 to 0.895 in | 21.971 to 22.733 mm
Specifications Standard Length Coil
150 ft | 45.72 m
Specifications Type
DSL
