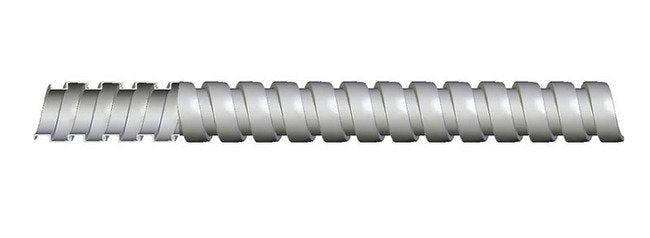

The Anaconda Type DSL3 Uncovered Conduit is a versatile solution for light-duty and general electrical applications, constructed with continuously interlocked hot dipped zinc galvanized steel. This conduit provides a reliable raceway for wiring, offering exceptional flexibility with a tight 'U' bend radius. Ideal for installations where agency approvals are not required, it boasts a nominal size of 3/16 inches, inside diameter ranging from 0.183 to 0.195 inches, and an outside diameter of 0.263 to 0.275 inches. With industry certifications including RoHS and WEEE, this conduit is designed for temperatures up to +450°F.
Product Specifications
Application 0
Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature
Installation 0
Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.
Specifications Approx Inside Bend Radius
1 in | 25.4 mm
Specifications Approx Weight Per 100 Ft
4.4 lbs | 2.00 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
91202 | SF | SF-3/16 | SL-316
Specifications Industry Certifications
RoHS WEEE
Specifications Inside Diameter
0.183 to 0.195 in | 4.648 to 4.953 mm
Specifications Jacket Material
None
Specifications Nominal Size
3/16 in | 5 mm
Specifications Outside Diameter
0.263 to 0.275 in | 6.680 to 6.985 mm
Specifications Standard Length Coil
250 ft | 76.2 m
Specifications Type
DSL
