Anaconda Type DSL8 Flexible Metal Conduit
Anaconda Type DSL8 Flexible Metal Conduit
SKU:FLE-b52a81
Premium Anaconda Type DSL8 Flexible Metal Conduit for light-duty electrical applications. Easy to install, certified for quality and compliance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Anaconda Type DSL8 Flexible Metal Conduit
$149.99
Quantity: 1
Claim Your Seller Account
Anaconda Type DSL8 Flexible Metal Conduit
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

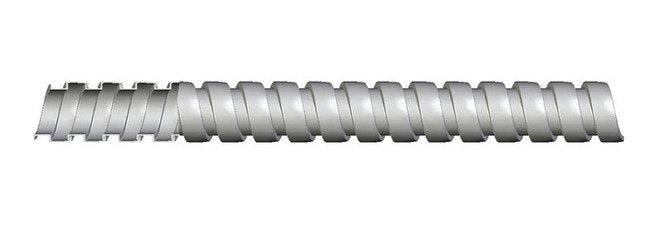

The Anaconda Type DSL8 Flexible Metal Conduit is a premium solution for light-duty, general electrical applications. Constructed from continuously interlocked hot dipped zinc galvanized steel, this conduit provides a reliable raceway for wiring. With a nominal size of 1/2 inch and exceptional flexibility, it allows for tight bends, making it ideal for installations where flexibility is key. This all-purpose conduit is easy to install with standard connectors and is suitable for specific applications where agency approvals are not a requirement. Certified by RoHS and WEEE, this conduit ensures compliance with industry standards.
Product Specifications
Application 0
Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature
Installation 0
Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.
Specifications Approx Inside Bend Radius
1.5 in | 38.1 mm
Specifications Approx Weight Per 100 Ft
11.6 lbs | 5.26 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
97202 | SF | SF-1/2 | SL-11
Specifications Industry Certifications
RoHS WEEE
Specifications Inside Diameter
0.493 to 0.513 in | 12.522 to 13.030 mm
Specifications Jacket Material
None
Specifications Nominal Size
1/2 in | 13 mm
Specifications Outside Diameter
0.613 to 0.633 in | 15.570 to 16.078 mm
Specifications Standard Length Coil
200 ft | 60.96 m
Specifications Type
DSL
