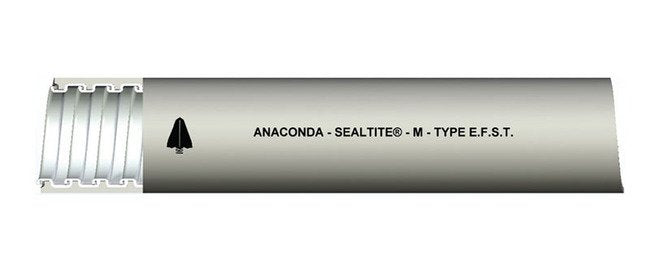

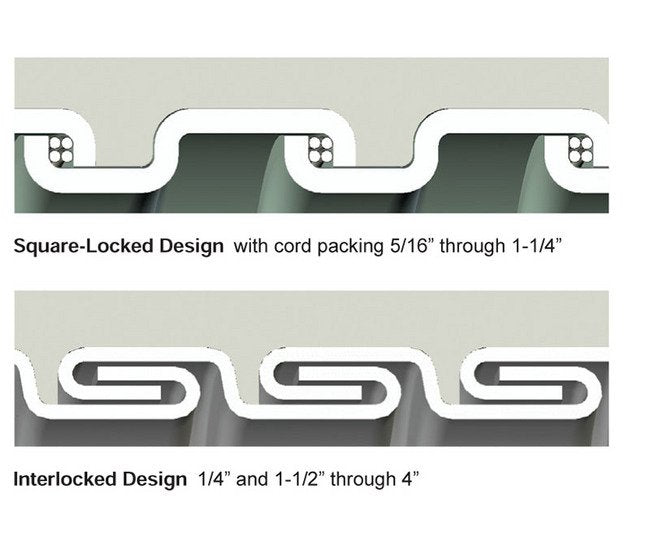

The Anaconda Type EFST Flexible Liquid Tight Metal Conduit offers a reliable solution for creating a flexible, liquid-tight raceway for wiring. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit ensures durability and protection for electrical conductors. It is IP 67 rated when used with approved end connectors, making it suitable for a wide range of applications where agency approvals are not required. With industry certifications like RoHS and WEEE, this conduit meets high standards of quality and safety.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 1/4" through 6". Conduit sizes 2-1/2", 3", 3-1/2", and 4" are Type UA/EFST. Smooth appearing jacket for exposed applications. Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
51 lbs | 23.13 kg
Specifications Color
GRAY
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
13104 | 55-10-68-03 | 6104-41-00 | EF | JIC | JIC-1 | LT-13
Specifications Electrical Trade Size
1 in | 27 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.030 to 1.055 in | 26.162 to 26.797 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
400 ft | 121.92 m
Specifications Optional Colors
Black
Specifications Outside Diameter
1.290 to 1.315 in | 32.766 to 33.401 mm
Specifications Packaging
Standard Coils
Specifications Type
EFST
