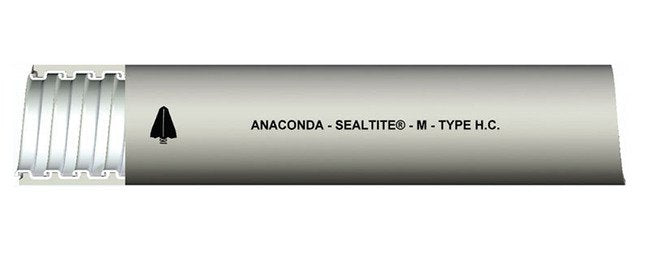

Anaconda Type HC Liquid-Tight Flexible Metal Conduit

Name: Anaconda Type HC Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-f1c10a
Price: 199.99 USD
Availability: OutOfStock

SKU:LIQ-f1c10a

Anaconda Type HC Liquid-Tight Conduit - High/Low temp, liquid-tight raceway, RoHS/WEEE certified, IP 67 rated.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

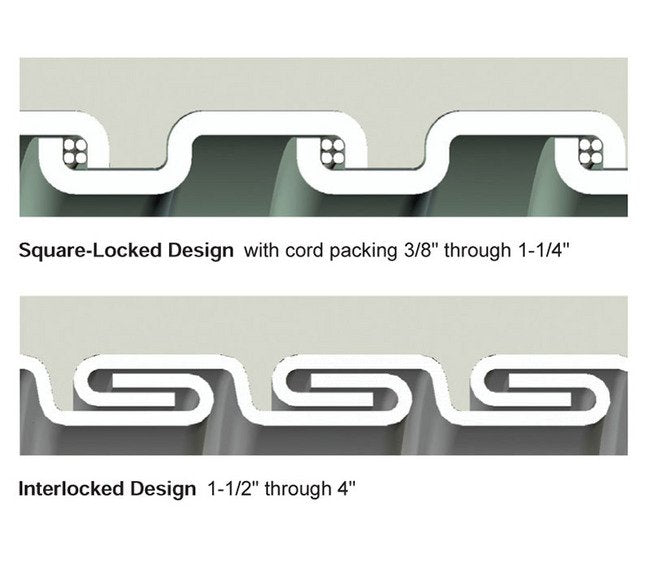

The Anaconda Type HC Liquid-Tight Flexible Metal Conduit is designed for high and low-temperature environments, with a temperature range of -51ºF to +221ºF. Constructed with a continuously interlocked hot-dipped zinc-galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit offers a flexible and liquid-tight raceway for wiring. It meets industry certifications including RoHS and WEEE, delivering superior wiring protection where agency approvals are not required. When installed with approved end connectors, it achieves an IP 67 rating, ensuring reliable performance in various applications.

Product Specifications

Application 0

High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

5.5 in | 139.7 mm

Specifications Approx Weight Per 100 Ft

104 lbs | 47.17 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

35104 | AT-15 | HTL-1-1/2

Specifications Electrical Trade Size

1-1/2 in | 41 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.575 to 1.600 in | 40.005 to 40.640 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

150 ft | 45.72 m

Specifications Note

Sizes above 2" available on special order.Other colors available upon request.

Specifications Optional Colors

Black

Specifications Outside Diameter

1.865 to 1.900 in | 47.371 to 48.260 mm

Specifications Packaging

Small Reels

Specifications Type

Anaconda Type HC Liquid-Tight Flexible Metal Conduit
