Anaconda Type HC Liquid-Tight Flexible Metal Conduit
Anaconda Type HC Liquid-Tight Flexible Metal Conduit
SKU:LIQ-8be377
Anaconda Type HC Liquid-Tight Flexible Metal Conduit - Ideal for high and low-temperature environments, providing superior wiring protection without agency approvals.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Anaconda Type HC Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
Anaconda Type HC Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

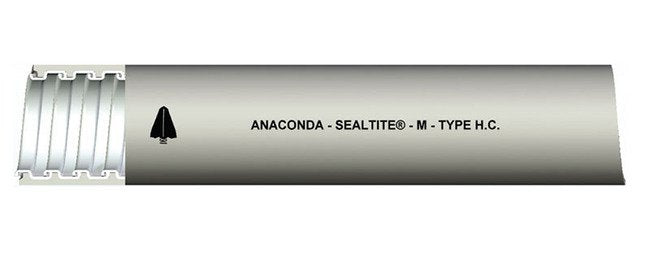

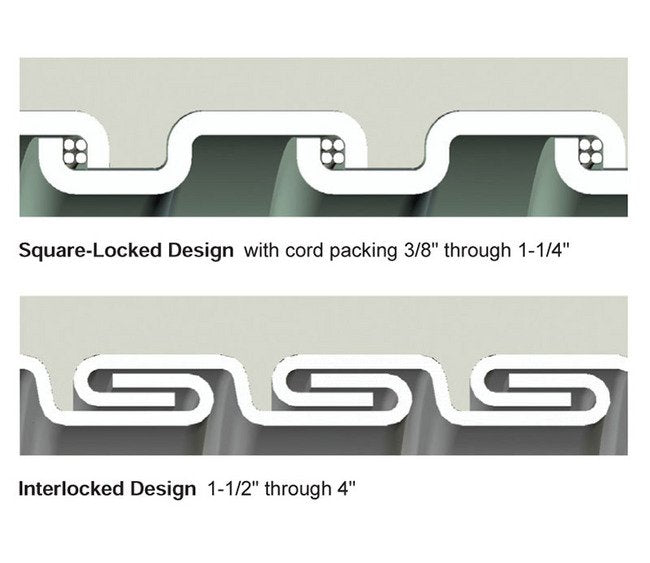

The Anaconda Type HC Liquid-Tight Flexible Metal Conduit is designed for high and low-temperature environments, offering a versatile and durable solution for wiring applications. Constructed with continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant PVC outer jacket, this conduit provides a flexible liquid-tight raceway for electrical conductors. With an Ingress Protection (IP) rating of 67 when used with approved connectors, it ensures superior wiring protection in various settings. Ideal for temperatures ranging from -51ºF to +221ºF (-46ºC to +105ºC), this conduit is suitable for a wide range of applications where agency approvals are not required.
Product Specifications
Application 0
High and Low Temperature EnvironmentsTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -51ºF to +221ºF (-46ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
7.0 in | 177.8 mm
Specifications Approx Weight Per 100 Ft
136 lbs | 61.69 kg
Specifications Color
GRAY
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
36102 | AT-16 | HLT-2
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.020 to 2.045 in | 51.308 to 51.943 mm
Specifications Jacket Benefits
Liquid Tight
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Sizes above 2" available on special order.Other colors available upon request.
Specifications Optional Colors
Black
Specifications Outside Diameter
2.340 to 2.375 in | 59.436 to 60.325 mm
Specifications Packaging
Small Cartons
Specifications Type
HC
