Anaconda Type NMUA Liquid-Tight Non-Metallic Conduit

Name: Anaconda Type NMUA Liquid-Tight Non-Metallic Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-4f5c86
Price: 799.99 USD
Availability: OutOfStock

SKU:LIQ-4f5c86

Anaconda Type NMUA - Liquid-Tight, Non-Metallic Conduit for indoor, outdoor, and corrosive applications. UL Listed and CSA Certified.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

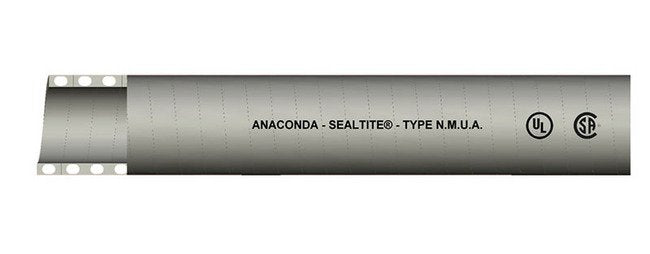

The Anaconda Type NMUA Nonconductive Conduit is a robust solution designed for indoor, outdoor, and corrosive environments as per NEC Article 356. Constructed with high-quality PVC material, this conduit offers a temperature range of -17ºF to +176ºF, making it suitable for various applications. UL listed and CSA certified as Type 'B' non-metallic conduit, it provides IP 67 protection when used with approved end connectors, ensuring reliable performance in demanding conditions.

Product Specifications

Application 0

General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).

Installation 0

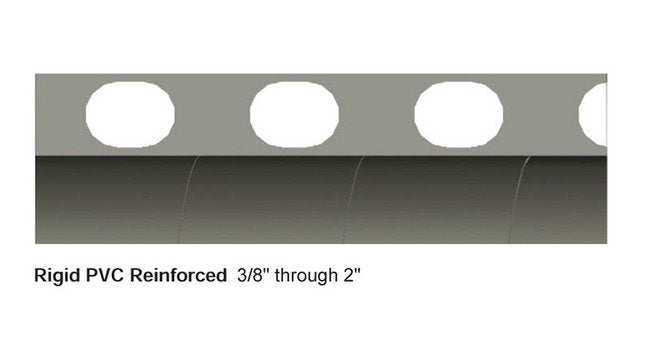

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".

Nec Articles 0

Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

3.5 in | 88.9 mm

Specifications Approx Weight Per 100 Ft

14 lbs | 6.35 kg

Specifications Color

GRAY

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

55-09-62-01 | 6002-60-00 | 81014 | LFNC-B | NM | NM-11 | NMUA | NMUA-1/2

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 65/66/67

Specifications Inside Diameter

0.622 to 0.640 in | 15.799 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

1000 ft | 304.8 m

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Standard Reels

Specifications Type

NMUA

Anaconda Type NMUA Liquid-Tight Non-Metallic Conduit
