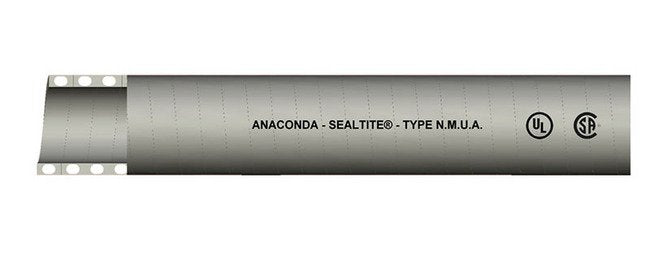

Anaconda Type NMUA Non-Metallic Liquid-Tight Conduit (LFNC-B)

Name: Anaconda Type NMUA Non-Metallic Liquid-Tight Conduit (LFNC-B)
Brand: Anamet Electrical, Inc.
SKU: LIQ-a9ff83
Price: 129.99 USD
Availability: OutOfStock

SKU:LIQ-a9ff83

Anaconda Type NMUA Non-Metallic Liquid-Tight Conduit: UL Listed, CSA Certified, IP 67 Rated. Temperature range: -17ºF to +176ºF. Ideal for diverse applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Anaconda Type NMUA Non-Metallic Liquid-Tight Conduit (LFNC-B) is a versatile solution designed for inside, outside, and corrosive applications as stipulated in NEC Article 356. This PVC conduit ensures reliable performance in temperatures ranging from -17ºF to +176ºF (-27ºC to +80ºC). UL listed and CSA certified as Type B non-metallic conduit, it boasts an IP 67 rating when paired with approved end connectors. Easy to install and suitable for various environments, this conduit meets rigorous industry standards and offers exceptional durability and protection for your electrical systems.

Product Specifications

Application 0

General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).

Installation 0

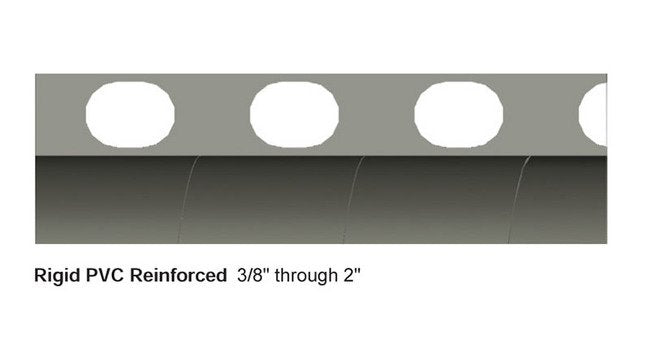

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".

Nec Articles 0

Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

3.5 in | 88.9 mm

Specifications Approx Weight Per 100 Ft

14 lbs | 6.35 kg

Specifications Color

GRAY

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

55-04-62-01 | 6002-30-00 | 81011 | LFNC-B | NM | NM-11 | NMUA | NMUA-1/2

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 65/66/67

Specifications Inside Diameter

0.622 to 0.640 in | 15.799 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Standard Carton

Specifications Type

NMUA

Anaconda Type NMUA Non-Metallic Liquid-Tight Conduit (LFNC-B)
