Anaconda Type RWS Flexible Steel Conduit (FMC)

Name: Anaconda Type RWS Flexible Steel Conduit (FMC)
Brand: Anamet Electrical, Inc.
SKU: FLE-385aac
Price: 149.99 USD
Availability: OutOfStock

SKU:FLE-385aac

Flexible steel conduit with UL listing, suitable for various applications. High crush resistance, meets UL and NEC standards.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

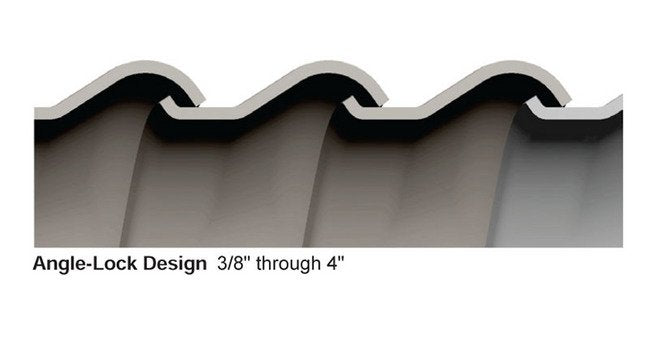

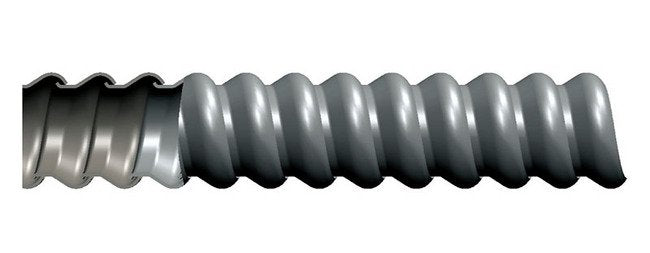

The Anaconda Type RWS Flexible Steel Conduit (FMC) is a versatile solution that provides a flexible raceway for wiring. Constructed from continuously interlocked hot-dipped zinc galvanized steel, this conduit meets UL certification standards for electrical trade sizes ranging from 3/8" to 4". With high crush resistance and a maximum temperature of +450°F, it is suitable for a wide range of applications including exposed and concealed locations, motor leads, elevators, and more.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

12.5 in | 317.5 mm

Specifications Approx Weight Per 100 Ft

165 lbs | 74.84 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5508-22-00 | 55-09-20-01 | 69372 | BR-17 | RWS-2-1/2

Specifications Electrical Trade Size

2-1/2 in | 63 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

2.500 in | 63.500 to 0.000 mm

Specifications Jacket Material

None

Specifications Length

25 ft | 7.62 m

Specifications Outside Diameter

2.860 to 3.060 in | 72.644 to 77.724 mm

Specifications Packaging

Standard Coils

Specifications Type

RWS

Anaconda Type RWS Flexible Steel Conduit (FMC)
