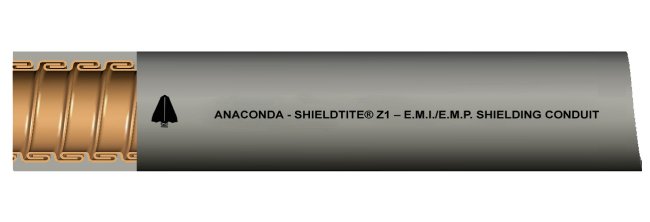

Anamet SHIELDTITE® Z1 EMI/EMP Flexible Metal Conduit

Name: Anamet SHIELDTITE® Z1 EMI/EMP Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-a4b28f
Price: 159.99 USD
Availability: OutOfStock

SKU:LIQ-a4b28f

Premium SHIELDTITE® Z1 EMI/EMP Flexible Metal Conduit for high-level shielding needs. With IP 66/67 rating, operates between -40ºF to +176ºF, meeting Mil-STD-1310H standards.

$159.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Anamet SHIELDTITE® Z1 EMI/EMP Flexible Metal Conduit is designed for high-level shielding needs, featuring a Thermoplastic Polyurethane (TPU) jacket with a bronze core ensuring superior shielding effectiveness meeting Mil-STD-1310H standards. With an IP 66/67 Ingress Protection rating, it offers EMI/EMP shielding effectiveness of 81 - 119 dB at 1-1000 MHz. This liquid-tight, zero halogen conduit operates between -40ºF to +176ºF, making it ideal for RFI and EMI shielding applications. Available in custom lengths, it ensures easy installation with standard liquid-tight connectors.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

9.5 in | 241.3 mm

Specifications Approx Weight Per 100 Ft

125 lbs | 56.70 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78262 | 78264 | HFEMS-16

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

2.020 to 2.045 in | 51.308 to 51.943 mm

Specifications Jacket Benefits

Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

2.340 to 2.375 in | 59.436 to 60.325 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE® Z1

Anamet SHIELDTITE® Z1 EMI/EMP Flexible Metal Conduit
