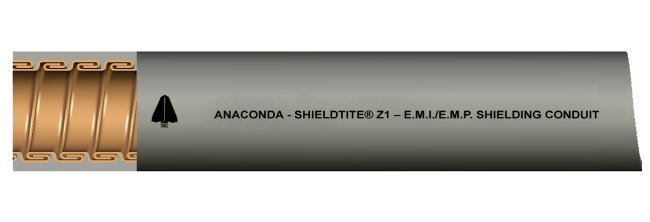

Anamet SHIELDTITE® Z1 - High Level EMI/EMP Shielding LFMC
Anamet SHIELDTITE® Z1 - High Level EMI/EMP Shielding LFMC
SKU:LIQ-0436f1
Anamet SHIELDTITE® Z1 - Premium EMI/EMP Shielding LFMC, IP 66/67, -40ºF to +176ºF, Smooth Installation
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Anamet SHIELDTITE® Z1 - High Level EMI/EMP Shielding LFMC
$99.99
Quantity: 1
Claim Your Seller Account
Anamet SHIELDTITE® Z1 - High Level EMI/EMP Shielding LFMC
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Anamet SHIELDTITE® Z1 is a premium liquid-tight flexible metal conduit designed for high level shielding against EMI/EMP interferences. With a Thermoplastic Polyurethane jacket and a bronze core, this conduit ensures superior shielding effectiveness of 81 - 119 dB at 1kHz to 1GHz, meeting Mil-STD-1310H standards. Suitable for temperatures from -40ºF to +176ºF, it offers IP 66/67 protection and is available in custom lengths. Easy to install with standard liquid-tight connectors, it is ideal for applications requiring high RFI and EMI shielding.
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
13.5 in | 342.9 mm
Specifications Approx Weight Per 100 Ft
211 lbs | 95.71 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78282 | HFEMS-18
Specifications Electrical Trade Size
3 in | 78 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
3.070 to 3.100 in | 77.978 to 78.740 mm
Specifications Jacket Benefits
Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
3.460 to 3.500 in | 87.884 to 88.900 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE® Z1
