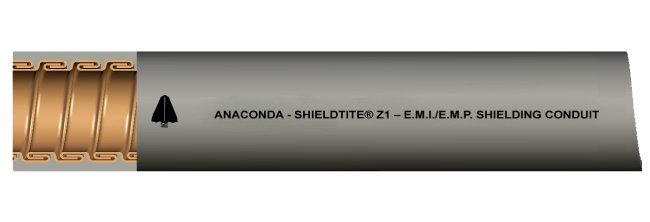

Anamet SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit
Anamet SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit
SKU:LIQ-f3efd1
Anamet SHIELDTITE® Z1: High-level shielding, IP 66/67 rated, EMI/EMP compliant, and flexible. Ideal for RFI/EMI shielding applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Anamet SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit
$39.99
Quantity: 1
Claim Your Seller Account
Anamet SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Anamet SHIELDTITE® Z1 Liquid-Tight Flexible Metal Conduit is a top-tier solution for high-level RFI and EMI shielding needs. Featuring a Thermoplastic Polyurethane (TPU) jacket with a bronze core, this conduit meets Mil-STD-1310H for EMI and EMP shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. With an IP 66/67 Ingress Protection rating and a temperature range of -40ºF to +176ºF (-40ºC to +80ºC), it ensures optimal performance in diverse environments. Easy to install with standard liquid-tight connectors, this conduit safeguards sensitive conductors while offering custom lengths to suit specific project needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
28 lbs | 12.70 kg
Specifications Color
GRAY
Specifications Core Material
Bronze
Specifications Cross Reference
78211 | 78214 | HFEMS-11
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.622 to 0.642 in | 15.799 to 16.307 mm
Specifications Jacket Benefits
Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Polyurethane (TPU)
Specifications Length
Custom
Specifications Note
Available in Random Lengths
Specifications Outside Diameter
0.820 to 0.840 in | 20.828 to 21.336 mm
Specifications Packaging
Contact Anamet
Specifications Type
SHIELDTITE® Z1
