Anamet Type DE-710 Heavy-Duty Flexible Metal Conduit

Name: Anamet Type DE-710 Heavy-Duty Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-b00425
Price: 49.99 USD
Availability: OutOfStock

SKU:FLE-b00425

Anamet Type DE-710 Heavy-Duty Flexible Metal Conduit - Extra flexible with crush and corrosion resistance, UL Recognized for OEM and industrial applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

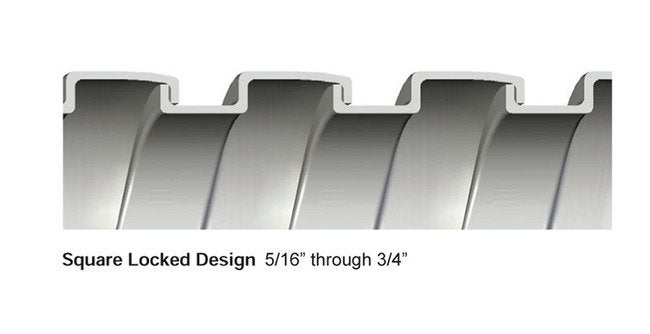

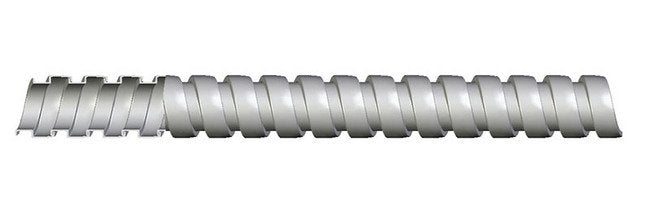

The Anamet Type DE-710 Heavy-Duty Flexible Metal Conduit is an extra flexible, UL Recognized component designed for OEM and industrial applications. Constructed with a continuously interlocked hot dipped zinc galvanized steel core, this conduit offers exceptional crush and corrosion resistance. With an inside diameter ranging from 0.594 to 0.619 inches and an outside diameter of 0.738 to 0.763 inches, it provides flexibility for tight bend radii. This conduit complies with UL Recognized File No. E-39679; DXUZ2 and is suitable for use in office furnishings, work stations, and partitions. It meets Article 604 Manufactured Wiring Systems of NEC regulations, ensuring reliable performance in various settings.

Product Specifications

Application 0

Extra FlexibleExtra Strength+450°F Maximum Temperature

Installation 0

Used in office furnishings, work stations and partitions.Exceptional flexibility for tight "U" bend radius.Complies with UL Recognized File No. E-39679; DXUZ2. Size range, actual I.D. 5/16" through 3/4".Available in custom-cut lengths.+450ºF maximum temperature.

Nec Articles 0

Article 604 Manufactured Wiring Systems

Specifications Approx Inside Bend Radius

1.75 in | 44.45 mm

Specifications Approx Weight Per 100 Ft

17 lbs | 7.71 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

96402 | AFS | AFS-5/8 | SLINKY FLEX | USL-5/8

Specifications Industry Certifications

RU Certification

Specifications Inside Diameter

0.594 to 0.619 in | 15.088 to 15.723 mm

Specifications Jacket Material

None

Specifications Length

Custom

Specifications Nominal Size

5/8 in | 15 mm

Specifications Note

Longer length reels available on request - consult factory.

Specifications Outside Diameter

0.738 to 0.763 in | 18.745 to 19.380 mm

Specifications Packaging

Contact Anamet

Specifications Type

DE - 710
